Auto 2 wires combined terminal crimping machine, Auto 3 ends crimping machine

Name: Auto 2 wires combined terminal crimping machine, Auto 3 ends crimping machine
Brand: RKENS
SKU: RS-3308
Price: 1 USD
Availability: InStock
Rating: 4.9 (114 reviews)

Auto 2 wires combined terminal crimping machine, Auto 3 ends crimping machine supplier

Large Image : Auto 2 wires combined terminal crimping machine, Auto 3 ends crimping machine

Product Details:

Place of Origin:	China
Brand Name:	RKENS
Model Number:	RS-3308

Contact Now

Detailed Product Description

One End:	Combined Wire Press Terminals	One End:	Press Terminals Separately

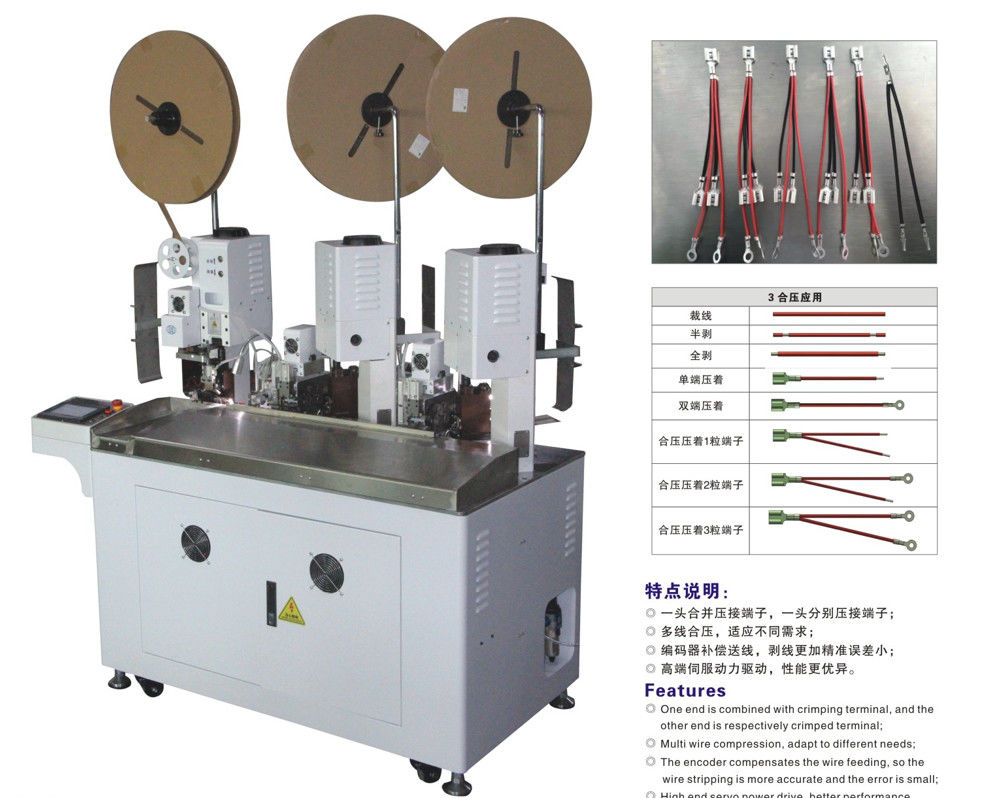

Full auto 2 wires combined terminal crimping machine crimping two wires together on the same terminal connector 3 connectors

Automatic wire cutting stripping and two wires combined one terminal crimping machine, can automatically process of wire cutting, peeling, crimping two wires into one terminal

* Automatic wire cutting, peeling, crimping two wires into one terminal, and crimping a terminal to the other end;

* The equipment is highly automated, and an ordinary worker with simple training can control two fully automatic CNC double-wire combined terminal crimping machines;

Intro:

Auto wire crimping machine with 3 ends. Can process 2 different wires at same time.

One end crimping both wires with one same terminals.
Another side crimp each wire with a different terminal

Specification:

Machine function: wire cut to size, stripped at both ends, single-ended half-striped, single-wire single-ended crimping, single-wire double-ended crimping, double-wire crimping, double-wire single-end crimping. Three-end crimping terminal

Model	RS-520 Auto Combined 3 end crimping machine	RS-530 Auto Combined 3 end crimping machine	RS-540 Auto Combined 3 end crimping machine
Type	Two wires pressing 2 ends	Two wires pressing 3 ends	4 wires pressing 5 ends
Wire size	AWG16-28	AWG16-28	AWG16-28
Terminals	Vertical or horizontal taped terminals	Vertical or horizontal taped terminals	Vertical or horizontal taped terminals
Suitable applicator	OPT vertical or horizontal applicator	OPT vertical or horizontal applicator	OPT vertical or horizontal applicator
Size	1200x800x2000mm	1400x1300x2000mm	1400x1300x2000mm
Weight	About 350KG	About 420KG	About 420KG
Wire length	50-999mm	50-999mm	50-999mm
Efficiency	About 4000pcs/h(within 100mm)	About 4000pcs/h(within 100mm)	About 4000pcs/h(within 100mm)
Cut Tolerance	<=L*0.2%	<=L*0.2%	<=L*0.2%
Strip length	0-10mm	0-10mm	0-10mm
Power supply	AC220V, 50HZ/60HZ	AC220V, 50HZ/60HZ	AC220V, 50HZ/60HZ
Air supply	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Rated power	2.3KW	2.5KW	2.5KW
