Automatic PCB Lead Cutting Machine , Cutting PC Board Leads Machine
Intro:
RS-911A is an automatic type PCB lead cutting machine. It can automatically feed pcbs and trim extra pcb leads to required length, and it can cut length shortest to 1.5mm. And wrap prevention device in the equipment ensures no damage on the board.
Suitable:
To use the automatic PCB lead cutting machine, pcb should meet below requirement.
1. The pcb size should be within 400x250MM.
2. The PCB board side should have at least 2MM distance from components.
3. The shortest length machine can cut is up to 1.5MM. However if there is components on back side, lead length should be higher than components. For example, there is 3MM height components on bottom side, so after cutting, the lead length should be higher than 3MM. You can not cut lead length lower than 3.0MM.
Specification:
| Name |
Automatic PCB Lead Cutting Machine , Cutting PC Board Leads Machine |
| Model |
RS-911A |
| Power Supply |
380V AC50HZ/60HZ |
| Shortest cut length |
1.5MM Cut length is adjustable |
| Available PCB size |
Max 400x250MM |
| Blade type |
200MM Dia, And 250MM Dia for option |
| Efficiency |
4500 RPM |
Feature:
1. The eagle claw shrapnel clamp can nip PC boards tightly and push them forward automatically and stably.
2. The track board-delivery speed can be adjusted according to pins to increase the service life of the cutter.
3. As the principal axis rotates quickly, the machine works accurately and efficiently.
4. The crest pinprick ball and the bakelite press plank can reduce the error of lead-cutting of PC boards transformed during the tin soldering.
5. With a photoelectric switch, it is very safe.
Before and after cutting pcb lead showcase

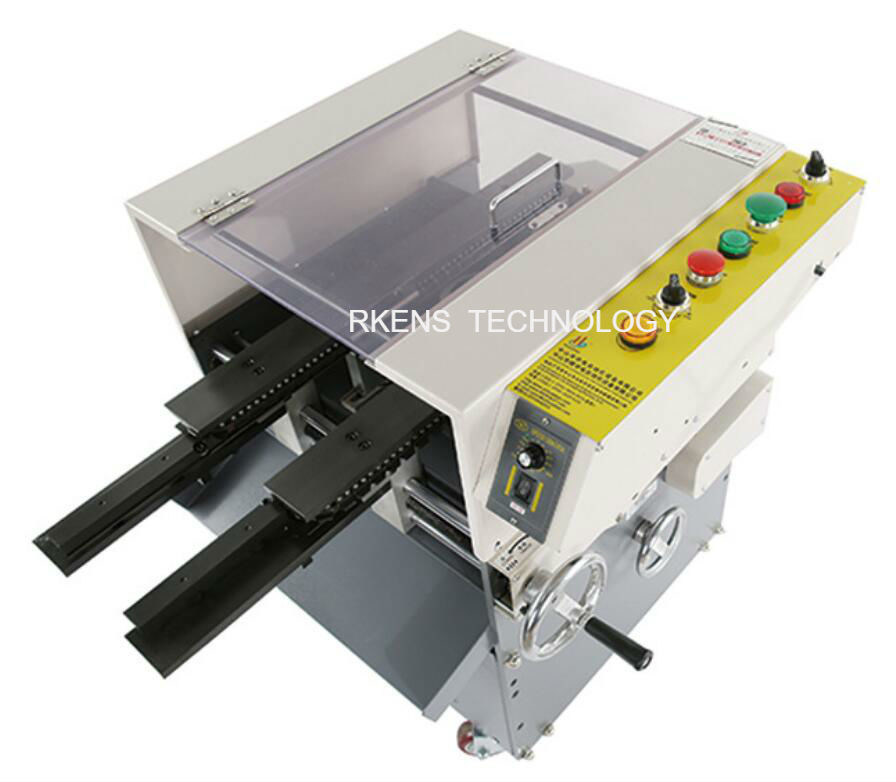

PCB lead cutter pictures
Datailed pictures of pcb lead cutting machine
Welcome to contact for more about our PCB lead cutting machine after soldering, soldered PCB lead wire cutter, Lead Cutter
