| Place of Origin | China |
| Brand Name | RKENS |
| Model Number | RS-30T/RS-50T |

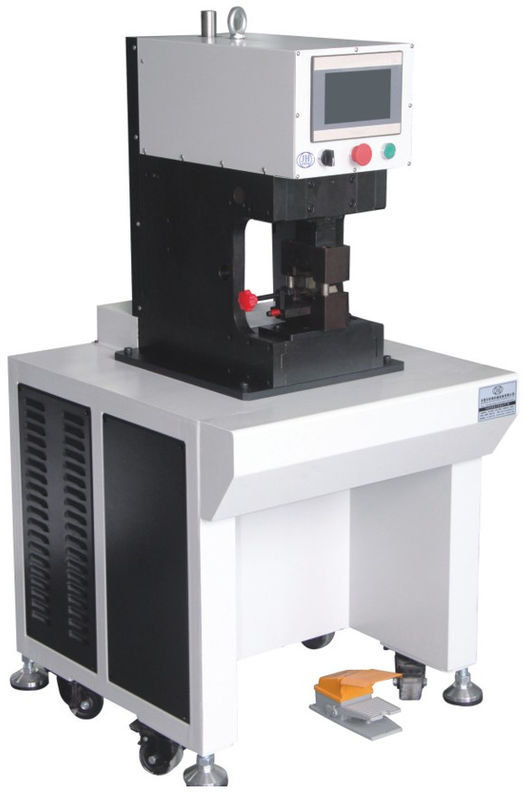

RS-30T/50T Servo Motor Terminal Press Machine
Intro:
The machine is suitable for designed for new energy, flexible cables, charging pile cables, high and low voltage distribution cabinets, automotive cables, large square cables and other industries research and development, lightweight, stable hydraulic system,
Suitable:
RS-30T is for 2.5-120sqmm big tubular terminals.
RS-50T is for 2.5-300sqmm terminals.
It can press hexagon shape or B shape.
Specification:
| Model | RS-30T hydraulic terminal press machine | RS-50T hydraulic terminal press machine |
| Power Supply | 220V | 220V |
| Display mode | 7 inch touch screen | 7 inch touch screen |
| Function | large square terminal crimping hexagon / B type | large square terminal crimping hexagon / B type |
| Effective stroke | 30-35MM | 30-35MM |
| Crimp Range | 2.5-120sqmm | 2.5-300sqmm (need to replace the mold) |
| Power | 2300W | 5500W |
| Suitable mold | Hexagonal mould, quadrilateral mould, upper and lower punching mould | |
| Size | 600 * 700 * 1500mm | 600 * 700 * 1500mm |
| Weight | 340KG | 400KG |
| Capacity | 600-1200PCS / H (according to manual proficiency Varies) | |
| Start Mode | Manual/Foot pedal | Manual/Foot pedal |
