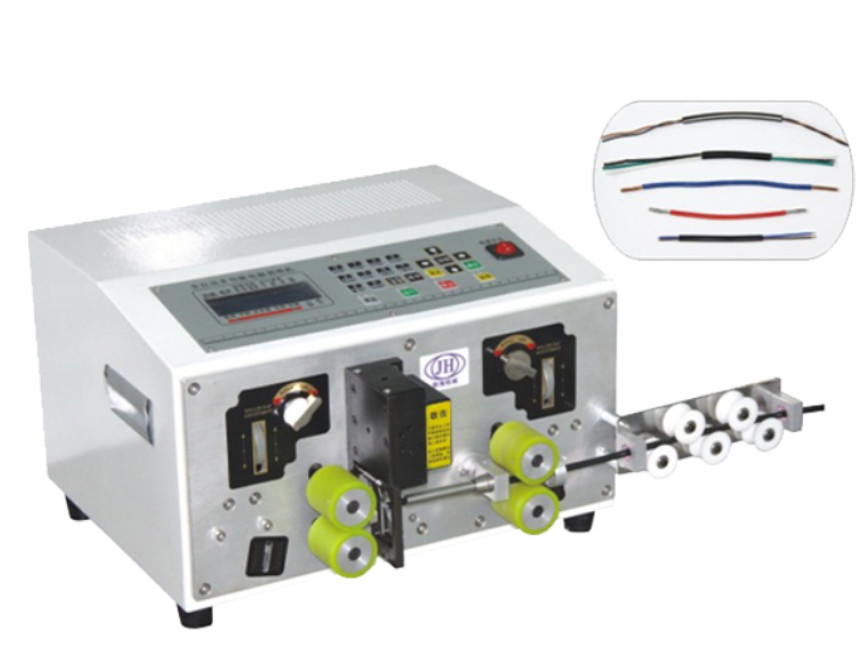

RS-16 is full automatic type wire cutting and stripping machine. It is suitable for both electric single core wire within 16 sqmm and multi-conductor cables with max 12MM OD. Cut length is 0.1-9999MM adjustable. Standard machine can make max 50MM strip length. If you need longer strip length, we can modify it to strip 200MM or longer.
For single core electric stranded wire
For Multi-conductor cables
Cable diameter should be within 12MM
Automatic cutting and stripping. Or cutting only
Suitable:
1. Multi-functional wire cutter and stripper, High accuracy, Fast speed
2.Suitable for round muti-core cable within 12MM OD. Or electric wire within 16 sqmm.
3. Cut only, or cut and strip at same time.
4.We provide different tube-conductors, for different size of cables
Specification:
Model
RS-16
RS-16T(Lift Roller Type)
Size
610x450x300MM
610x450x300MM
Weight
45KG
48KG
Power Supply
AC 220V/110V 50HZ/60HZ
AC 220V/110V 50HZ/60HZ
Available size
0.1-16sqmm
0.1-16sqmm
Cut length
0.1-99999.9mm
0.1-99999.9mm
Strip length
Front end:0-80mm
Rear end:0-50mm
Front end:0-200mm
Rear end:0-80mm
Conduct tube dia
6mm,8mm,10mm,14mm
6mm,8mm,10mm,14mm
Drive Mode
4-wheel driving
4-wheel driving
Working efficiency
1000-2000PCS/H
1500-2500PCS/H
Feature:
1.Fast speed cutting and stripping machine for wiring harness processing.
2.Multi-functional machine. For electric single core wire, multi-conductor cable.
3. LCD display shows parameters. Press buttons to set length, quantity,etc.
