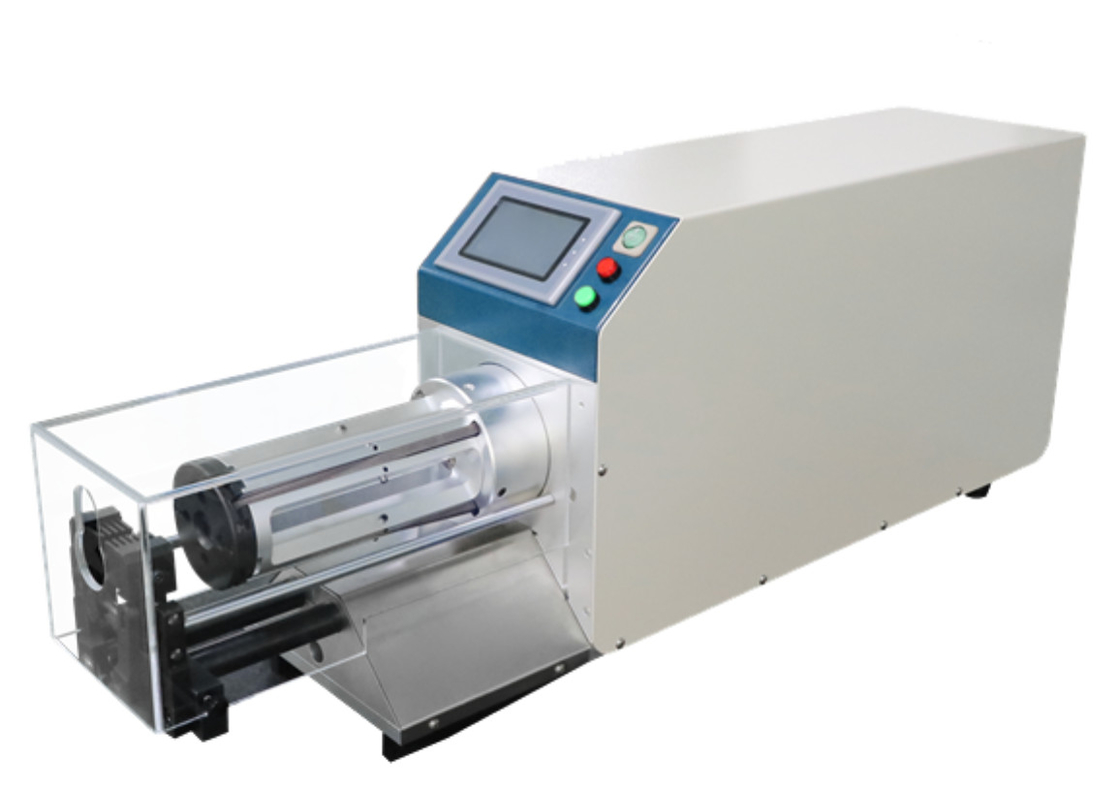

RS-2520 Coaxial Cable Stripping Machine Max 9 Layers Stripping

RS-2520 Coaxial Cable Stripping Machine Max 9 Layers Stripping

Intro:

RS-2520 coaxial cable stripper is suitable for Coaxial cable, new energy cable, high temperature cable.

Specification:

Model: RS-2520

Applicable wires: coaxial cables, new energy cables, high temperature cables

Maximum stripping length: 3-200mm

Peeling length setting unit: 0.01mm

Cutting wire diameter range: 3-24mm

Cutting depth setting unit: 0.01mm

Maximum number of peeling layers: 9 layers

Display mode: touch screen

Display interface: Chinese and English LCD 95mm*50mm

Working power supply: AC220V/110V50/60HZ

Power 800W

Overall dimensions: 1000*225*400mm

Weight 56kg

Driving method: motor ball screw drive

Tool material: imported mold steel

Number of blades: 4 rotary knives

Working environment: -5 to 45 degrees, dry and vibration-free work surface

Storage capacity: 99 kinds of processing parameter data

Production efficiency: 300-800Pcs/h (depending on the material)
