RS-3515 Rotary Blade Coaxial Cable Stripping Machine For 5-34mm OD Cable

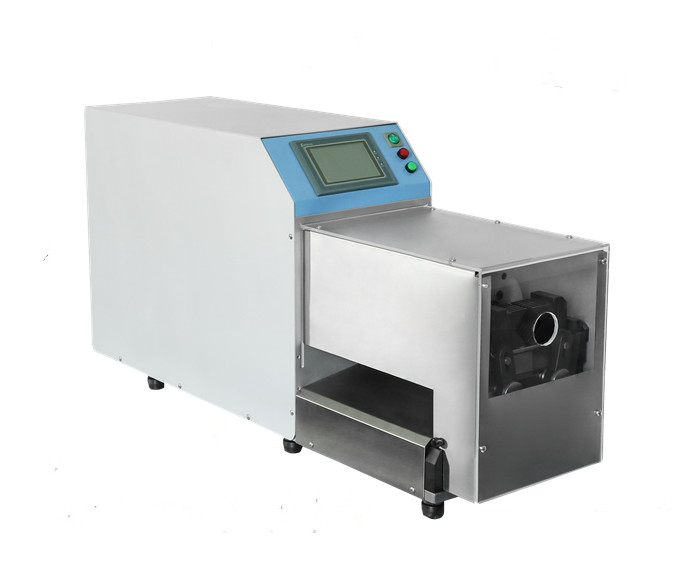

RS-3515 Rotary Blade Coaxial Cable Stripping Machine

Intro:

Display mode: touch screen

Applicable wires: new energy cables, coaxial cables, power cables, etc.

Specification:

Model: RS-3515

Display mode: touch screen

Applicable wires: new energy cables, coaxial cables, power cables, etc.

Cutting depth setting unit: 0.01mm

Peeling length setting unit: 0.01mm

Cutting wire diameter range: 5-34mm

Stripping length: 0.1-150mm

Maximum number of peeling layers: 9 layers

Display interface: Chinese and English LCD 95mm*50mm

Working power supply: AC220V/110V50/60HZ

Power 800W

Weight 108kg

Overall dimensions: 1000*285*490mm

Driving method: motor ball screw drive

Tool material: imported mold steel

Number of blades: 4 rotary knives

Working environment: -5-45 degrees dry and vibration-free work surface

Storage capacity: 99 kinds of processing parameter data
