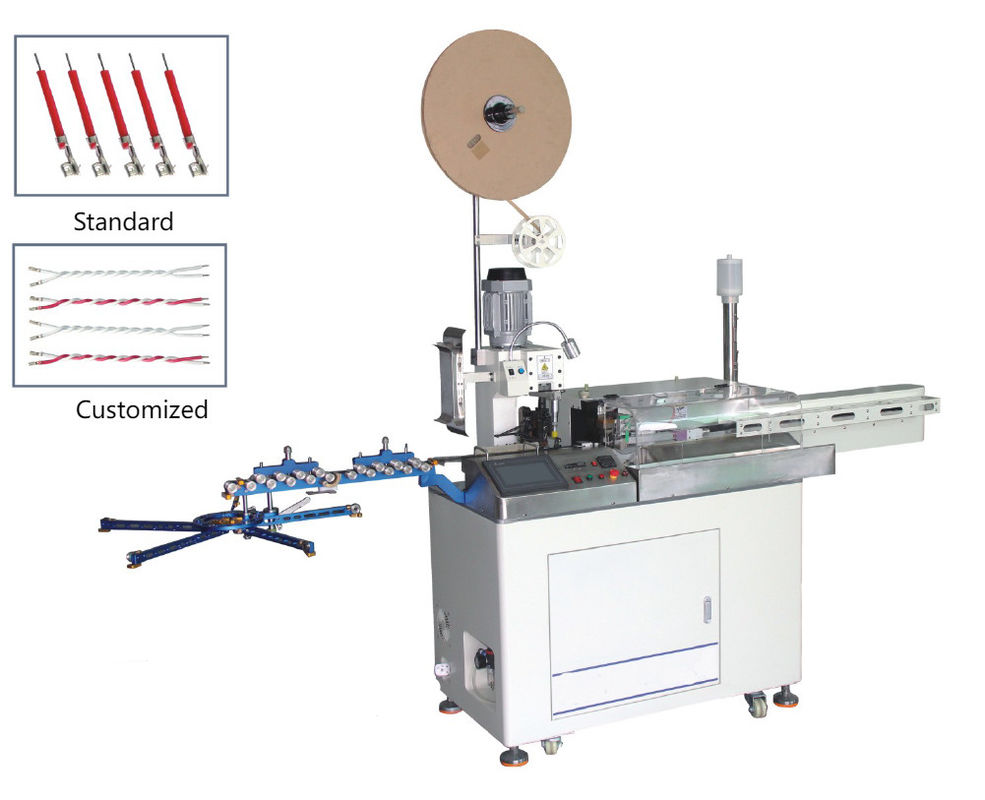

RS-5505 Automatic 5-lane One-End Crimp Machine One-End Tin Machine
Intro:
RS-5505 is an automatic wire cut strip, one-end crimp, one-end tin machine. It cut cut wires, one-end press terminals, double-end strip, one-end half-strip, one-end twist, one-end tin.
Suitable:
This wire cutting stripping tinning machine works for stranded electric wire, double-core flat ribbon cable.
Function: Automatic 5-lane One-End Crimp Machine One-End Tin Machine
Specification:
| Function |
Automatic 5-lane One-End Crimp Machine One-End Tin Machine |
| Power |
AV 220V 50/60Hz |
| Usage |
cut wires, one-end press terminals, double-end strip, one-end half-strip, one-end twist, one-end tin. |
| Production rate |
8000-12000pcs/h(depends on wires) |
| Applicable wire |
AWG32-AWG20 |
| Cutting length |
15-1000mm(can be customized) |
| Crimp force |
2.0T |
| Stripping Length |
1-10mm(If not twist)
3.5-10mm(If twist)
|
| Twist length |
3.5-10mm |
| Tinning length |
1-10mm |
| Cut tolerance |
0.1+-0.02*L |
| Air Supply |
0.6-0.8Mpa |
| Size |
1680*680*1680mm |
| Weight |
380kg |
Features:
It uses Servo + stepper motor, which is accurate, efficient and stable;
It uses touch screen to adjust, including: wire length, opening length, half stripping length, twisting tightness, twisting length, tinning length, etc., all completed at same time.
LCD touch screen for easy setting parameters.
