The utility model adopts a pure pneumatic induction design, which does not require power supply and does not require replacement or adjustment of the thick and thin wire cutters. The cutters adopt a 90. cross pattern, which makes the stripping clean and neat, avoiding the uneven cutting caused by two cross cutters, which can easily damage the core wire and bend the conductor.
Machine specification:

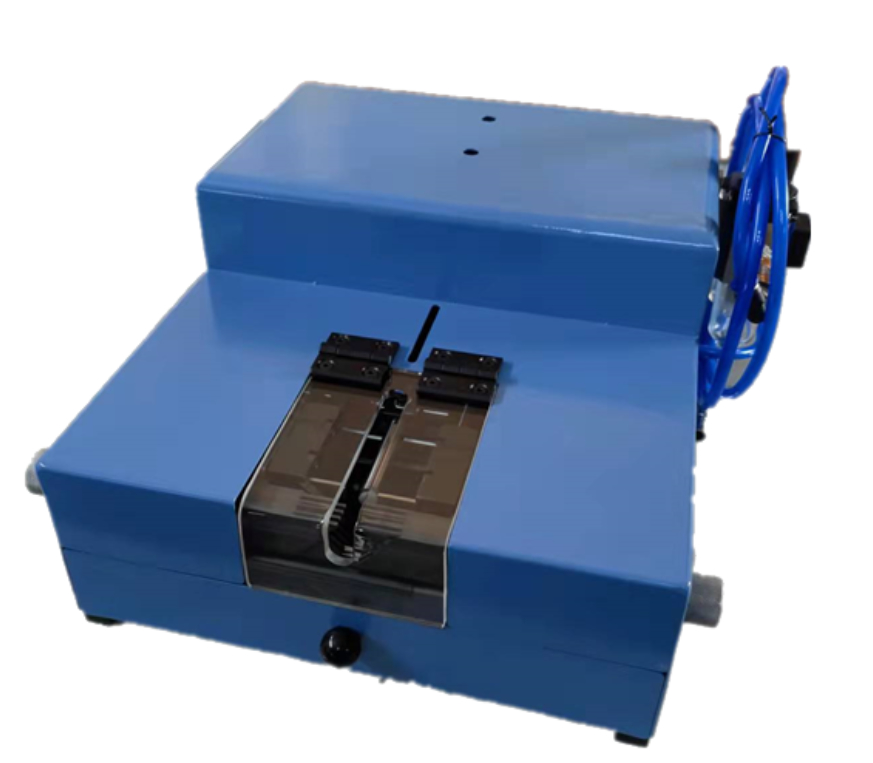

Equipment Name: Pneumatic Wire Stripper
Stripping Range: 0.5-6mm2 (Adjustable up to 10mm²)
Stripping Length: 2-50mm (Full Strip)
Production Capacity: 1500-2000 wires/hour
Operating Air Pressure: 0.4-0.75 MPa
Dimensions: 400*370*200mm
Net Weight: 24kg
Machine features:
1.This utility model features a purely pneumatic induction design that requires no power source, eliminating the need for replacement or adjustment of the cutters for thick and thin wires.
2. The cutters utilize four 90-degree, intersecting blades, resulting in clean and neat stripping, eliminating the uneven cuts, wire damage, and conductor bending caused by two intersecting blades.
3. The cutting depth can be easily adjusted, and the stripping length, whether full or partial, is easily controlled.
4.This machine boasts a compact, rational structure, simple operation, and exceptional safety.
5. It is suitable for stripping various electronic wires, sheathed power cords, and sheathed core wires of varying diameters.
