High Quality PCB Cutter/Cutting Machine, V PCB Cutter

China High Quality PCB Cutter/Cutting Machine, V PCB Cutter supplier

Large Image :  High Quality PCB Cutter/Cutting Machine, V PCB Cutter

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: YS-805A

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Wooden Case
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 300SETs Per Month
Detailed Product Description
Name: High Quality PCB Cutter/Cutting Machine, V PCB Cutter Suitable For: Max 400MM V Cut Pcbs
Type: Automatic Pcb Cutting Machine

High Quality PCB Cutter/Cutting Machine, V PCB Cutter

For pcbs with v-cut

pcb thickness: 0.2-3.2mm

v-cut thickness: 0.2-2.0mm



Features

1, Controlled by microcomputer program, it can cut board accurately with no error.

2, Adjustable blade moving speed: 300mm/s or 500mm/s. As per customers' need, certain speed can be set.

3, Upper blade can be adjustable between 0 and 2mm to meet different thickness of PCB and V-cut.

4, Operation platform can be adjustable higher and lower between 0 and 50mm.

5, As per your pcb length, we have different models for you. So any length pcb is available.

6. Available board thickness: 0-3.2mm, V-groove thickness:0-2mm

7. Pre-set the cutting start and end point to well control the cutting length.

8. The blades are sharp and endurable. And they can be sharpened between 7 and 10 times.

9. Minimize the shearing stress to avoid micro-cracks of the solder joints



Parameters



Model YS-805A
Cutting Length 0-400mm(For longer pcb, contact me)
Outer dimension L740xW550XH460mm
PCb length

Different models for different length of pcb cutting



Electric Load AC220V 50Hz & AC110V/60HZ
Electric Power 250W
Suitabe for V-Groove PCB Board/Aluminum PCB
Package Wooden Case
Weight

Approx.60KG

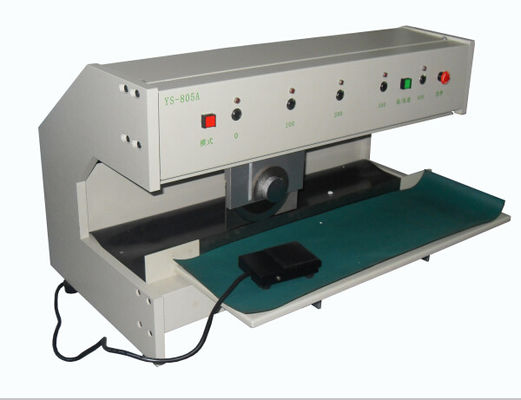

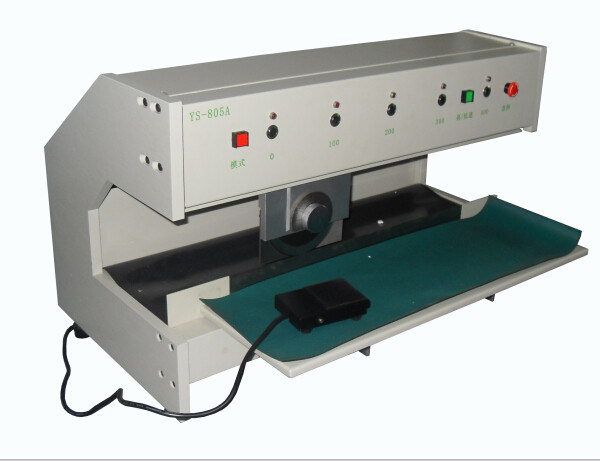

Pictures of v cut High Quality PCB Cutter/Cutting Machine

High Quality PCB Cutter/Cutting Machine, V PCB Cutter 0



pcb depanelizer is packed by wooden case

High Quality PCB Cutter/Cutting Machine, V PCB Cutter 1
