Multiple Blades LED Strip PCB Cutting Machine, Aluminum PCB Depaneling Machine
  • Multiple Blades LED Strip PCB Cutting Machine, Aluminum PCB Depaneling Machine

Multiple Blades LED Strip PCB Cutting Machine, Aluminum PCB Depaneling Machine

Place of Origin China
Brand Name RKENS
Certification CE
Model Number RS-700
Product Details
Name:
Aluminum PCB Cutting Machine, LED PCB Depaneling Machine
Usage:
Cut V Cut Aluminum PCB Board
PCB Length:
Any Length
Payment & Shipping Terms
Minimum Order Quantity
1SET
Packaging Details
Wooden Case
Delivery Time
3-5 days
Payment Terms
T/T, Western Union, Paypal
Supply Ability
300SETs Per Month
Product Description

Multiple Blades LED Strip PCB Cutting Machine, Aluminum PCB Depaneling Machine

Usage: Suitable for cutting unlimited length of v-cut PCB, aluminum PCB, FR4 PCB, PCBA, etc.

Aluminum PCB Cutting Machine, LED PCB Depaneling Machine

Multiple Blades LED Strip PCB Cutting Machine, Aluminum PCB Depaneling Machine 0

Machine Parameters
Maximum length of the board: unlimited
Thickness:0.6~3mm
Feed pcb Speed:80, 120, 200, 300mm/s
Material of blade :SKH7 HSS
Power supply: 220V/50HZ 40W
Operating temperature: 10~35 degrees
Can cut LED panel, fiberboard, aluminum board , FR4

Size: 540mm(L)*280mm(W)*240mm(H)
Weight: 40kg
Storage temperature: -20~50 degrees



  Platform PCB Type Packing weight

Packing

size

RS-700 without V Cut Aluminum PCB Board, Copper PCB, FR4, Fiberglass board 43KG
RS-710 With 1.2M V Cut Aluminum PCB Board, Copper PCB, FR4, Fiberglass board 56kg
RS-720 With 2.4M

V Cut Aluminum PCB Board, Copper PCB, FR4, Fiberglass board





68kg



Features
1. For cutting any length v cut pcb, aluminum pcb, fiber board, FR4, LED pcb, pcba.
2. Three pair of blades can guarantee the aluminum plate without deformation and damage after cutting.
3.Due to three times cutting, cutting process is smooth and can locate v cut very well to avoid v-cut jumping out.
4.High quality blade and small cutting force ensures long life of blade.
5.Blades are calibrated by Excitation double-frequency laser interference measurement instrument, which can ensure rear and front blades cut same places of the v cut. Perfect cutting effect.

Advantages

1. It is quite suitable for aluminum board.
2. It can cut the board without warping.
3. The stress is very low when cut board.




Platform:

1200 x 506 x 333 (1.2M) weight:6KG
2400 x 506 x 333 (2.4M) weight:15KG

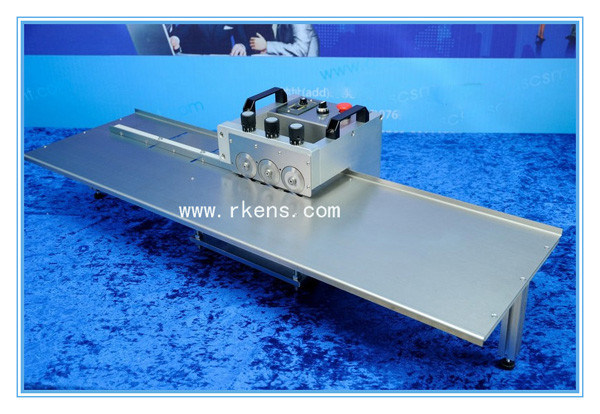

1.2M Platform


Multiple Blades LED Strip PCB Cutting Machine, Aluminum PCB Depaneling Machine 1

2.4M platform

Multiple Blades LED Strip PCB Cutting Machine, Aluminum PCB Depaneling Machine 2



Main Machine without platform

Multiple Blades LED Strip PCB Cutting Machine, Aluminum PCB Depaneling Machine 3
