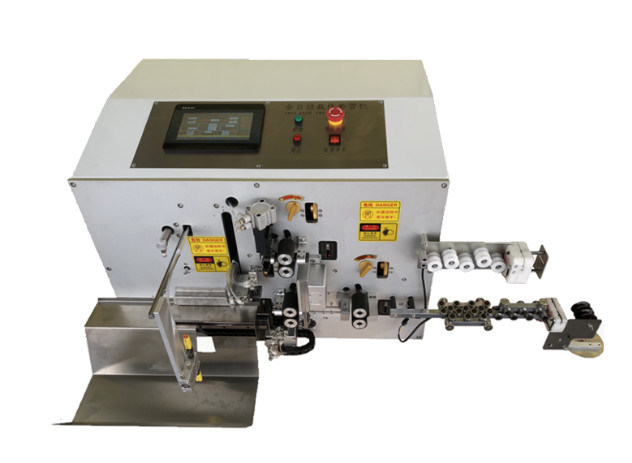

RS-4010 Computer Wire Stripping And Tube Inserting Machine

RS-4010 Computer Wire Stripping And Tube Inserting Machine

Equipment introduction: 1. Processing range (standard machine) Wire: OD1.0~3.0MM stripping length within 15MM cutting length ≥80MM Tubing: heat shrink tube, yellow wax tube, waterproof hose, etc. 1.2~The maximum outer diameter of the tube after deformation is ≤7MM Cutting length ≥40MM (tube cutting length + 38MM)> wire cutting length.

Equipment introduction:
1. Processing range (standard machine)
Wire: OD1.0~3.0MM stripping length within 15MM
Cutting length ≥80MM
Tubing: heat shrink tube, yellow wax tube, waterproof hose, etc. 1.2~ The maximum outer diameter of the tube after deformation is restored ≤7MM
Cutting length ≥40MM
(Tubing cutting length + 38MM) > When the wire cutting length, the wire cannot completely pass through the tube, and the tube will fall off when the finished product is laid out

2. Processing efficiency:
Tested under the conditions of wire outer diameter 1.5MM/tube 2.0/front/back stripping 5MM half stripping 2MM/tube cutting length 40MM
Wire length below 300MM: about 2650/H
Wire length above 500MM: about 2500/H
Wire length above 1000MM: about 2200/H
The above is the processing efficiency under specific conditions, which may fluctuate due to the different wire and casing conditions and processing specifications.
