RS-200Q Pneumatic Wire Stripper And Twister, Strip one wire one Time

RS-200Q Pneumatic Wire Stripper And Twister

Intro:

This machine is a new type of wire stripping and twisting machine. It needs both electric power and air. Machine can strip&twist single wire one time.

Specification:

Model:RS-JH200Q

Name: Wire stripper and twister

Power:30W

Air Supply:4.5KG

Strip and twist length:3-45MM

Power supply:220V/110V 50HZ/60HZ

Suitable wires:26-10AWG

Weight:10KG

Size:32*18*17MM

Features:

This machine is a new type of wire stripping and twisting machine. Compared with ordinary wire stripping and twisting machines, it has the following advantages:

1. It adopts electric foot switch control to overcome the cumbersome chain-type foot control, which reduces the labor intensity of workers, is easy to operate, and greatly improves efficiency.

2. The tool is improved to an ordinary double-knife peeling, which saves the high cost of the tool in the past and makes it easier to replace.

3. The power consumption of this machine is greatly reduced compared with ordinary stripping and twisting machines.

4. The blade of this machine has a V-shaped opening, which makes the twisting effect more beautiful and does not damage the copper wire. It is specially designed for rubber power supply wires. Other machines cannot peel twisted wires.

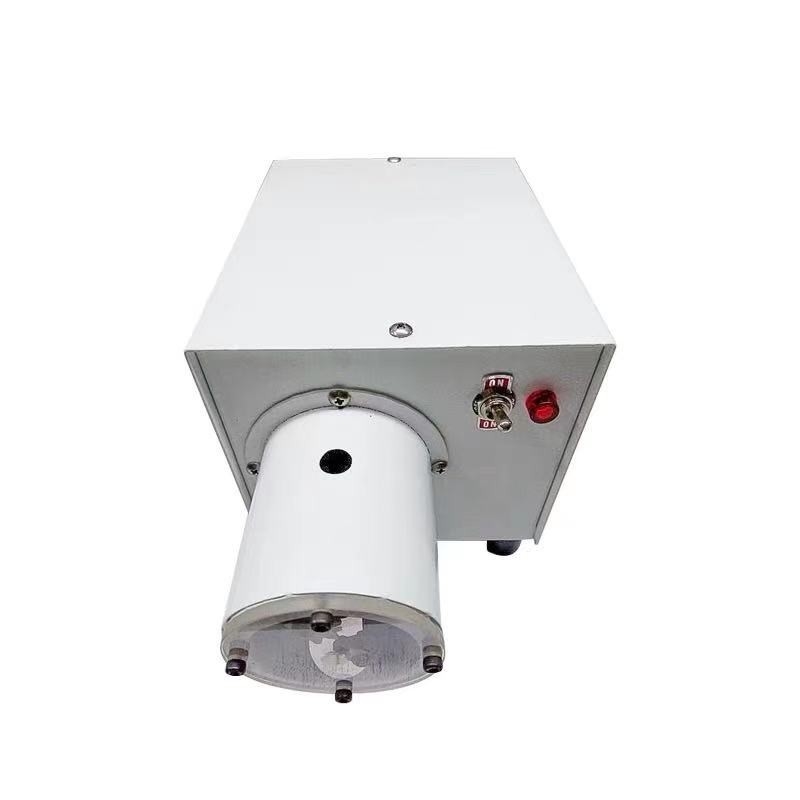

Wire stripping and twisting machine pictures

Stripping sampels
