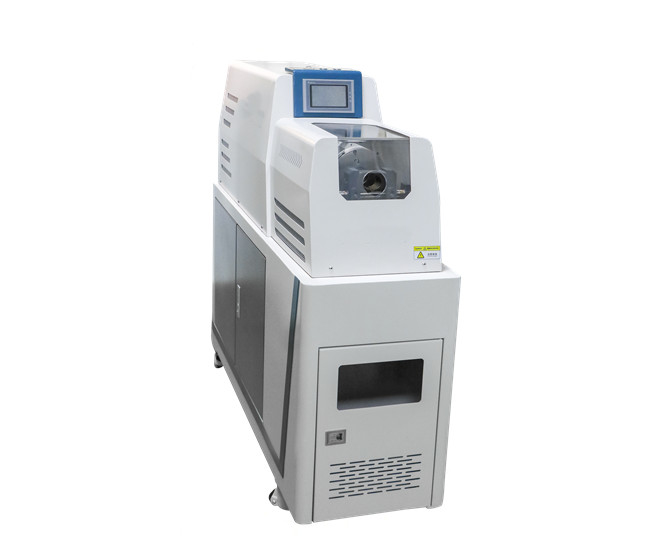

RS-4520S Semi-Automatic Coaxial Cable Stripping Machine With Rotary Knife

RS-4520 Rotary Blade Coaxial Cable Stripping Machine -Strip Max 9 Layers

Intro:

Display mode: touch screen

Applicable wires: new energy cables, coaxial cables, power cables, etc.

Specification:

Model: RS-4520S

Display mode: touch screen

Applicable wires: coaxial cables, new energy cables, power cables, etc.

Cutting depth setting unit: 0.01mm

Peeling length setting unit: 0.01mm

Cutting wire diameter range: 8-44mm

Stripping length: 0.1-200mm

Maximum number of peeling layers: 9 layers

Display interface: Chinese and English LCD 95mm*50mm

Working power supply: AC220V/110V50/60HZ

Overall dimensions: 1150*430*1350

Power: 800W

Peeling method: 4-piece rotary knife

Weight: 215kg

Driving method: motor ball screw drive

Tool material: imported tungsten steel

Working environment: -5~45 degrees, dry and vibration-free work surface

Storage capacity: 99 kinds of processing parameter data
