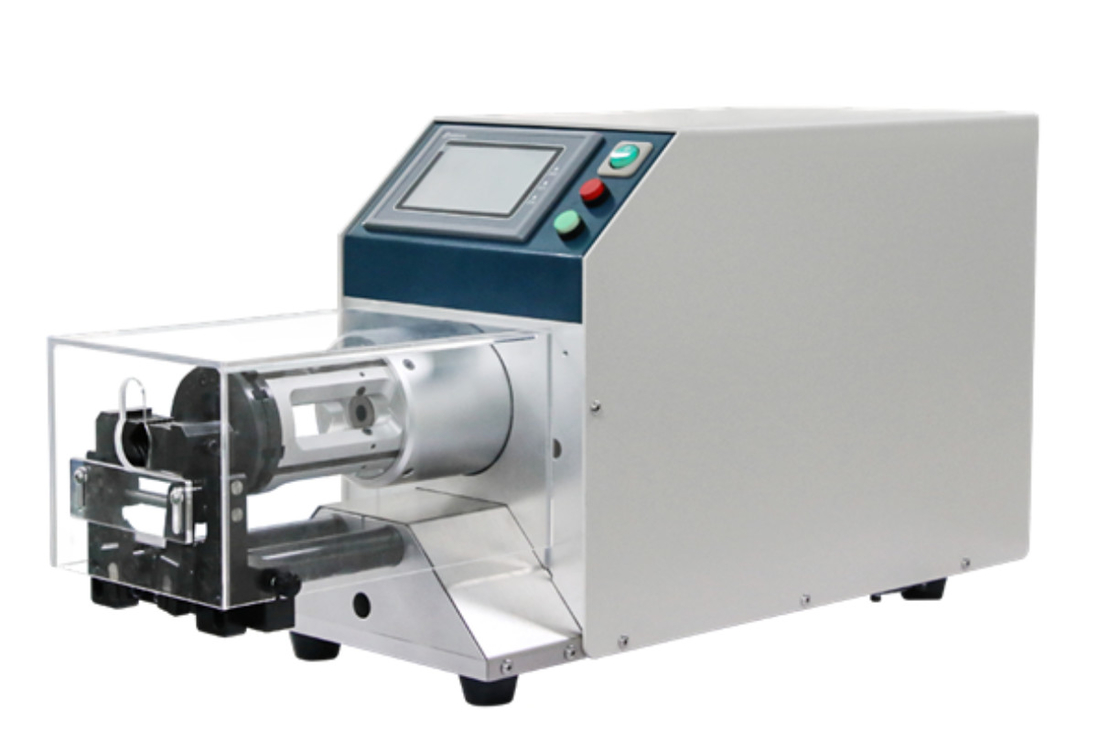

Rotary Knife Coaxial Cable Stripping Machine For Stripping Max 9 Layers

Intro:

RS-8608 Coaxial cable stripping machine is for 3-18mm coaxial cables, with max 90mm stripping length.

It is mainly used for the processing of coaxial cables and special single wires. It adopts a more advanced rotary tool holder to improve the accuracy and speed. It adopts a specific axial positioning device and rotary cutter method, and can strip 9 layers without changing the blade. It can process various sizes and sheath wires, and it can be equipped with a freely-configurable setting controller to display the wire diameter by digital display.

Machine specification:

Model: RS-8608

Display mode: touch screen

Applicable wires: coaxial cables, corrugated tube cables, new energy cables

Display interface: Chinese and English LCD 95mm*50mm

Working power supply: AC220V/110V50/60HZ

Power: 600W

Maximum stripping length: 90mm

Large overall size: 720*230*350mm

Peeling length setting unit: 0.01mm

Weight: 42kg

Cutting wire diameter range: 3-18mm

Driving method: motor ball screw drive

Cutting depth setting unit: 0.01mm

Peeling method: 4-piece rotary knife

Maximum number of peeling layers: 9 layers

Tool material: imported tungsten steel Working environment - 545 degree dry and vibration-free work surface

Storage capacity: 99 kinds of processing parameter data

Production efficiency: 400-800Pcs/h (depending on the material)

Feature:

1. Convenient operation, LCD display
Menu-style dialogue control system, easy to set each function, can save up to 100 kinds of processing data, can be manually, inductive system, safe and simple

2. Advanced knife holder
For coaxial and single wire, advanced rotary tool holder for precision and speed

3. User-friendly display, touch screen ease of operation

4. Strip up to 9 layers. Multi-step stripping
