RS-6806D Semi-Automatic Coaxial Cable Stripping Machine For 1.5-9.5MM Cable

RS-6806D Semi-Automatic Coaxial Cable Stripping Machine For 1.5-9.5MM Cable

Intro:

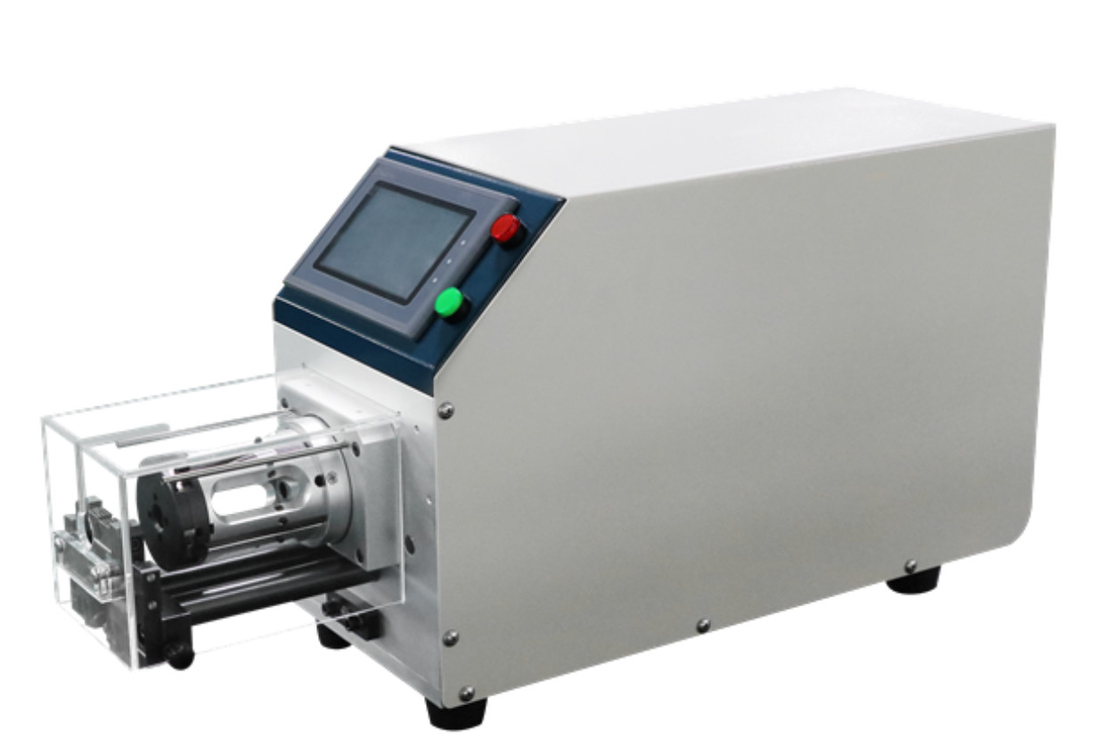

Model: RS-6806D Semi-Automatic Coaxial Cable Stripping Machine.

Applicable wire: coaxial cable, high temperature wire, 141 base station wire, new energy wire Maximum stripping length: 65mm

Specification:

Model: RS-6806D

Applicable wires: coaxial cable, high temperature wire, 141 base station wire, new energy wire

Maximum stripping length: 65mm

Peeling length setting unit: 0.01mm

Cutting wire diameter range: 1.5-9.5mm

Cutting depth setting unit: 0.01mm

Maximum number of peeling layers: 9 layers

Display mode: touch screen

Display interface: Chinese and English LCD 95mm*50mm

Working power supply AC220V/110V50/60HZ

Power: 400W

Overall dimensions: 600*185*280mm

Weight: 28kg

Driving method: motor ball screw drive

Tool material: imported tungsten steel

Number of blades: 4 rotary knives

Working environment: -5~45 degrees, dry and vibration-free work surface

Storage capacity: 99 kinds of processing parameter data

Production efficiency: 700-1200Pcs/h (depending on the material)
