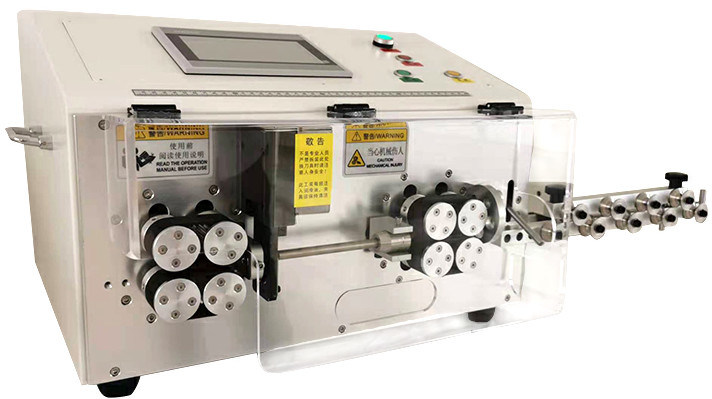

RS-35 Cable Cutting And Stripping Machine For Max 35mm2 Cables
Intro:
RS-35 is an automatic cable cutting and stripping machine. It works for max 35sqmm cables. Machine can cut stranded wires, and multi-conductor cables. Cut length and strip length can be set easily.
Suitable:
Stranded wires , multi-conductors cables.
Max cable diameter: 16mm (Within 35mm2)
Specification:
Model | RS-35 Cable Cut and Strip Machine |
Display mode | 7-inch color touch screen PLC |
Memory function | up to 200 groups of programs can be stored |
Applicable wire diameter | multi-strand copper wire, coaxial cable, sheathed wire, etc |
Driving mode | eight-wheel drive, synchronous belt double pressure wire feeding |
Applicable wire core area | BVR1.5-35mm2 |
Blade material | imported high-speed steel |
Large conduit diameter | ø16mm |
Working voltage | 220V/110V 50HZ/60HZ |
Cutting length range | 0-100 meters |
Rated power | 650W |
Stripping length at both ends | wire head 0-250mm, wire tail 0-120mm |
Dimensions | 560*520*450mm |
Min insulation left length | 50mm |
Weight | about 70kg |
Cutting tolerance | ±(0.002mm*L) (L means cutting length) |
Stripping speed |
800-1500 strips/hour (depending on the length of the wire)
|
Features:
1. This machine adopts 8-wheel drive, double-sided pressure rollers, strong power, high precision, and the belt feeding system can ensure that the surface of the wire is not damaged. It is widely used in the processing of military, medical, communication, power cables, sheathed wires, soft and hard wires. .
2. The pressing strength of the incoming and outgoing pulleys can be set directly in the program, without manually adjusting the pressure of the wheels. The outlet wheel also has the function of automatically lifting the wheel. When stripping the wire head, the outlet wheel can be lifted up automatically to avoid it, thus greatly increasing the stripping length range of the thread end. The lifting height of the outlet wheel can also be directly set in the program.
3. The color touch screen operation interface, the parameters are intuitive and easy to understand, and the machine can be quickly operated with only simple training; Three-time stripping; provide 200 sets of program memory function, which can store the processing parameters of different wires in different program numbers.
