RS-9600S Coaxial Cable Cutting And Stripping Machine

Automatic coaxial cable cutting and stripping machine

Parameters:

Model: RS-9600S

Display mode: touch screen

Applicable wire: coaxial cable

Cutting capacity: 50mm-9999mm

Cutting wire diameter range: 1.0-6.0mm (replacement head max8.5mm)

Peeling length: right end max100mm, left end max45mm

Line cutting accuracy: length accuracy ±1‰

Peeling accuracy: ±0.15mm

Cutting depth setting unit: 0.01mm

Maximum peeling layers: 6 layers

Display interface: Chinese and English LCD 153mm*85mm

Working power: AC220V/110V 50/60HZ

Dimensions: 790*730*400mm

Power: 800W

Weight: 120kg

Drive mode: motorball screw drive

Peeling method: rotary knife + cutting and peeling knife

Tool material: imported tungsten steel + imported high-speed steel

Working environment: -5—45 degrees, dry and vibration-free work surface

Storage capacity: 40 kinds of processing parameter data (limited to 40 kinds)

Production efficiency: 350-900pcs/h (depending on the sight material)

Strip Samples

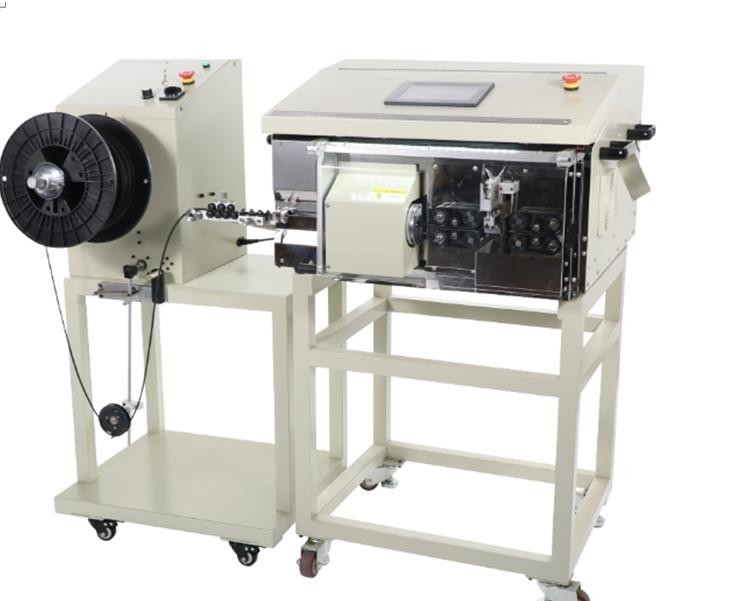

Picture of Coaxial Cable Cutting And Stripping Machine

Machine video:
