RS-5508J Servo Motor Automatic Wire Tinning And Twisting Machine
  • RS-5508J Servo Motor Automatic Wire Tinning And Twisting Machine

RS-5508J Servo Motor Automatic Wire Tinning And Twisting Machine

Place of Origin China
Brand Name RKENS
Model Number RS-5508J
Product Details
Automatic Wire Tinning And Twisting Machine
Cut, Strip ,twist And Tin Wires
Cut Length:
15-1000mm. For Longer Length, Can Be Customized
Strip Length:
Twist Length::
Tin Length:
Product Description

Customized Automatic Wire Tinning Machine With Twisting Feature



RS-5508J is a customized automatic wire tinning machine with twisting wires together feature. It can cut, strip, twist and tin wires at fast speed.

Usage: Cutting, One -end stripping, two-end stripping, two-ends twisting, one -end tinning, two-ends tinning.


Machine video:  https://youtu.be/u2kKbXyCoek


This wire cutting stripping tinning machine works for stranded electric wire, double-core flat ribbon cable.

Standard machine can only work for 14-32AWG wires, cutting stripping, twisting copper strands, and tinning.

Customized machine can work for flat double core cable. Or cutting, stripping tinning and twisting wires together.




Function Full automatic cutting full stripping, tin dipping
Power AV 220V 50/60Hz
Usage Cut, Strip, Twist and double-end tinning
Production rate 8000~12000pcs depend on the wire length
Applicable wire AWG32-AWG10
Cutting length 10-650mm
Cut tolerance 0.2+-0.02*L
Stripping Length 0.5-8mm
Twist length 3~9mm
Tinning length 0.5~9mm
Size 800x600x1000mm
Weight 350kg



1, using the touch screen to adjust, including: wire length, opening length, half stripping length, twisted wire tightness, twisted wire length, tinning length, etc. It can be completed by one button;

2. Using a computer Type automatic detection, low air pressure, abnormal motor, abnormal belt, etc., can automatically stop when abnormal, and the detection will show the cause of the fault, which is convenient and quick to eliminate the fault;

3. The best feature is simple adjustment technology, short adjustment time, and greatly Reduce the adjustment time.

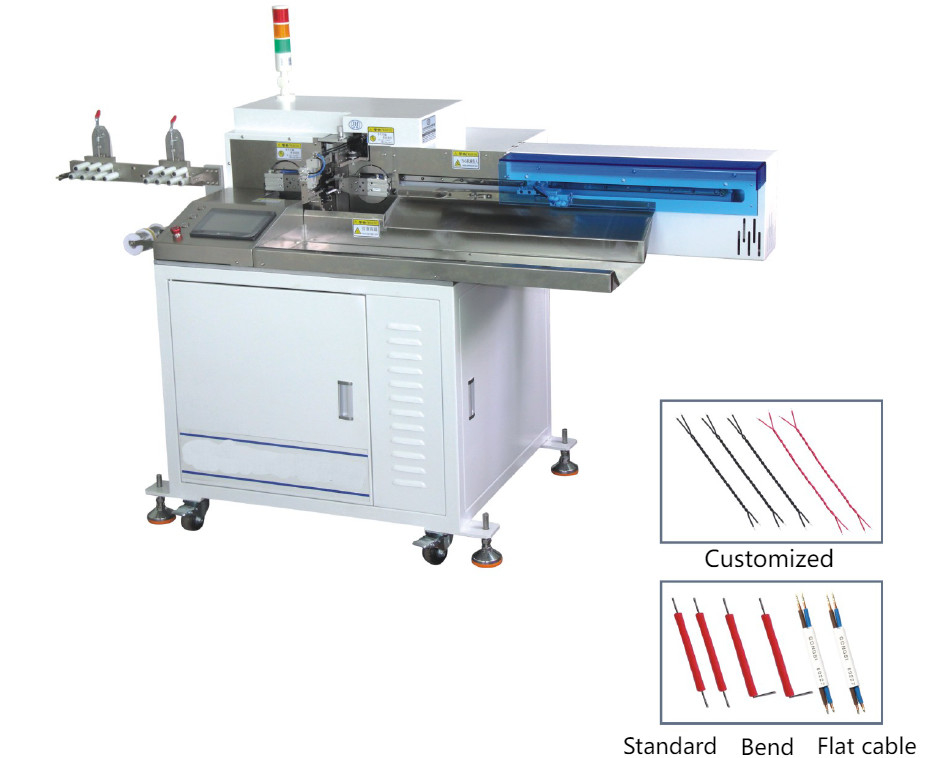

RS-5508J Servo Motor Automatic Wire Tinning And Twisting Machine 0

Machine video:
