RS-310S/315S Multi-Conductor Cable Two-Layer Stripping Machine

Name: RS-310S/315S Multi-Conductor Cable Two-Layer Stripping Machine
Brand: RKENS
SKU: RS-310S RS-315S
Price: 1 USD
Availability: InStock
Rating: 4.6 (146 reviews)

RS-310S/315S Multi-Conductor Cable Two-Layer Stripping Machine supplier

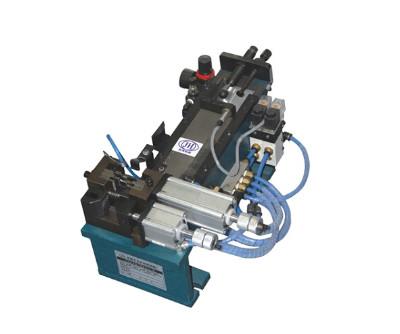

Large Image : RS-310S/315S Multi-Conductor Cable Two-Layer Stripping Machine

Product Details:

Place of Origin:	China
Brand Name:	RKENS
Model Number:	RS-310S RS-315S

Contact Now

Detailed Product Description

Name:	Multi-Conductor Cable Two-Layer Stripping Machine	Usage:	Strip Both Outer Jacket And Inner Insulation
Suitable Cable:	3-7mm	Strip Length:	15-80mm

RS-310S/315S Multi-Conductor Cable Two-Layer Stripping Machine

Intro:

Multi-core data cable, power cable sheath and core wire are stripped at one time, with a pair of round cutters for the outer skin and a pair of conventional flat cutters for the core wires (cutter can be added). Compared with the traditional processing method of stripping the outer skin first and then stripping the core wire, the labor cost is greatly saved, and the effect is more perfect.

Machine video: https://youtube.com/shorts/kcaC-v91d_o?feature=share

Specification:

Model	RS-310S Multi-core cable two-layer stripping machine	RS-315S Multi-core cable two-layer stripping machine
Power supply	AC220/110V 50/60HZ	AC220/110V 50/60HZ
Wire size	3-7mm	3-10MM
Outer Jacket Strip length	15-80MM	15-130MM
Inner core strip length	0-15MM	0-15MM
Air pressure	4-7KG	4-7KG
Size	50x36x20CM	65x36x20CM
Weight	28KG	35KG
Ususage	Both outer jacket and inner insulation stripping can be finished at same time	Both outer jacket and inner insulation stripping can be finished at same time
