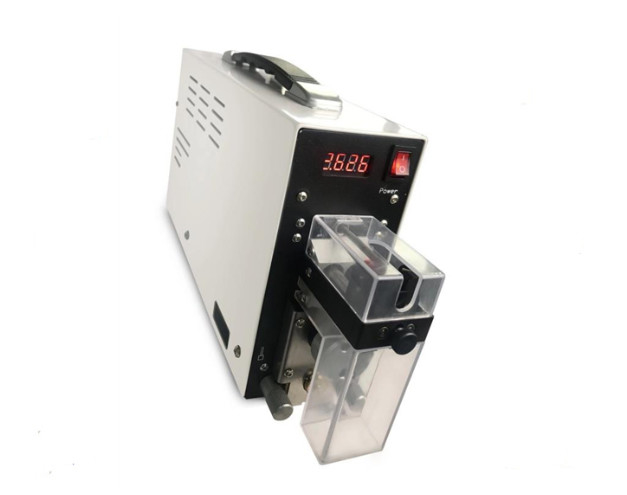

RS-G002 220V/110V Electric Wire Stripper, High Accuracy Wire Stripping Tool
  • RS-G002 220V/110V Electric Wire Stripper, High Accuracy Wire Stripping Tool

RS-G002 220V/110V Electric Wire Stripper, High Accuracy Wire Stripping Tool

Place of Origin China
Brand Name RKENS
Model Number RS-G002
Product Details
Name:
Electric Wire Stripper
Power Supply:
220V/110V
Product Description

220V/110V Electric Wire Stripper, High Accuracy Wire Stripping Tool



Intro:

Operating temperature -5°C ~ 40°C, induction type / foot pedal trigger start, tangent range 0.3 ~ 4.0 square, adjustment methods are knobs, length 1.5-20mm adjustable, wire diameter 0.3-4.0 adjustable, half The length of the stripped glue is adjustable. The main features of the machine are high precision, high efficiency and fast payback cycle, pure electricity, not restricted by air pressure.



Machine video:  https://youtu.be/okYkO-pAk1k

https://youtu.be/iiSyqhaO6Qw



Suitable:



 Loose wires, solid core wires, single stranded wires, single core cables, wires, cables, rubber wires, PUR PVC Teflon



Parameters:

Wire size 0.03 – 4.0mm²
Max wire diameter 4.2 mm
Strip accuracy Full Strip: 0.5 mm Half-Strip: 6mm
Diameter setting accuracy 0.01 mm
Max strip length 20 mm
Processing time About 0.5 s
Size(L*W*H) 380 x 85 x 188 mm
Weight Net Weight: 4.5 kg Gross Weight: 5 kg
Power supply AC110v/220v



Features:

1. It can work without power supply after connecting to the air source.

2. The sensor control does not require a foot switch to strip the head accurately.

3. The stripping length, cutting depth, half stripping and full stripping are all adjusted by the scale knob without tool assistance. Simple and fast.

4. The 90-degree V-shaped knife edge design is extremely versatile, and it does not need to change the knife edge to process different wires.

5. Small size (3KG), easy to move, it can work normally where there is air source.



RS-G002 220V/110V Electric Wire Stripper, High Accuracy Wire Stripping Tool 0



Machine video:
