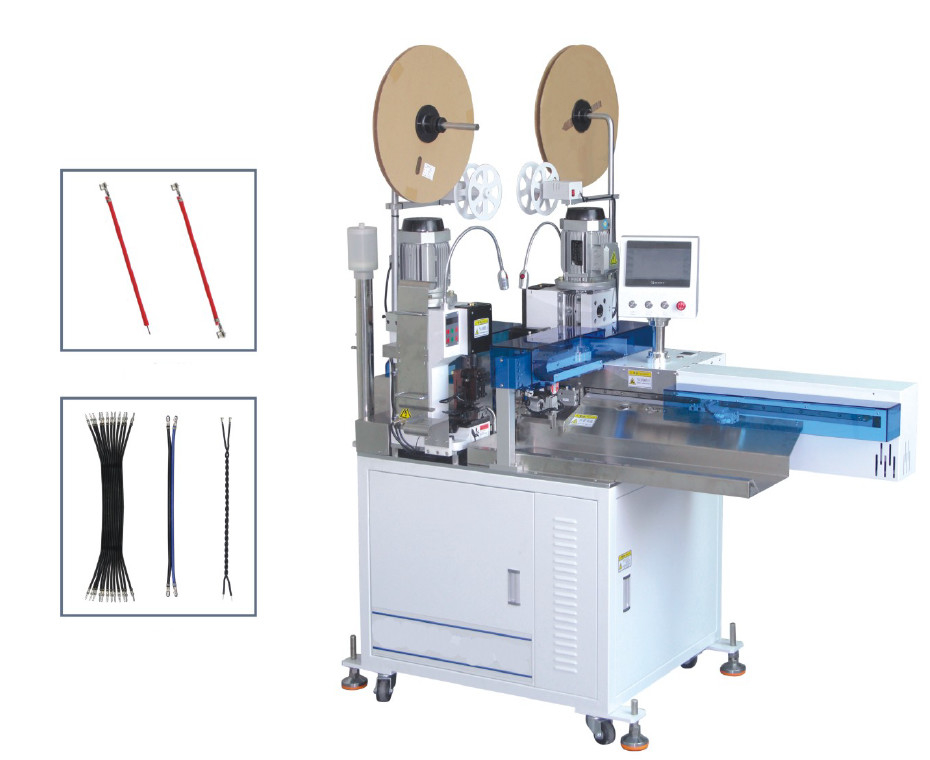

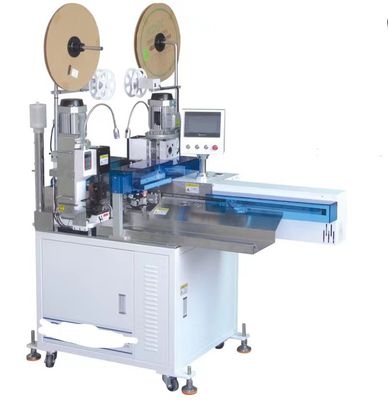

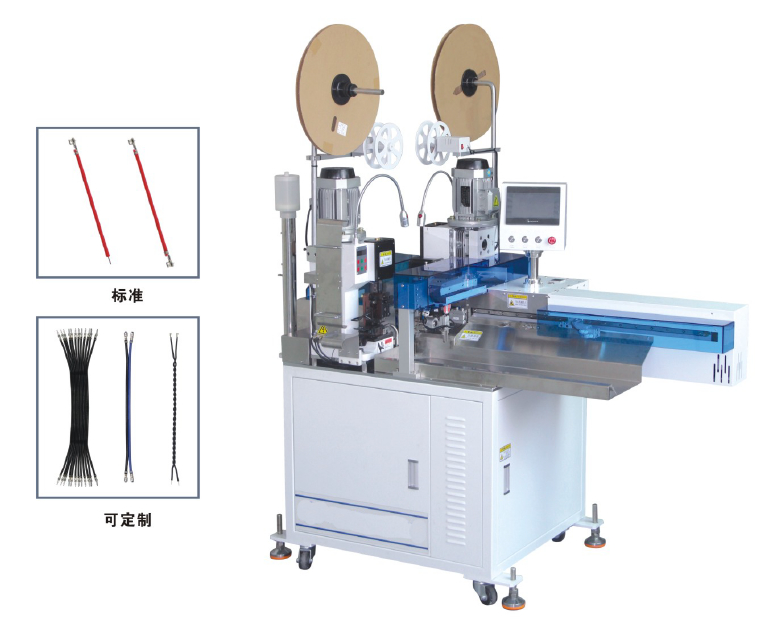

RS-02A Auto Double-End Crimping One-End Tinning Machine
Intro:
RS-02A is for wire cutting, double-end stripping and terminal stripping, single-end stripping and single-end sharp skin twisting, front end stripping with tin on the back end, double-end half stripping, etc. The operation interface can be switched between Chinese and English.
Suitable:
It can cut and strip wires, double-end crimping , one end crimping & one end stripping and twisting, front end crimping & rear end tinning, two ends half-stripping, etc.
Parameters:
| Model |
RS-02A Full-automatic double-head end Crimping And single-head dip tin machine |
| Cut length |
30mm-800mm (customizable) |
| Strip length |
0- 11mm |
| Twist length |
3-11mm |
| Tin dip length |
0.5-11mm |
| Power supply |
220V, 50HZ/60HZ |
| Processing capacity |
AWG22#ーAWG32# (12 per output, capacity 15.6K, straighteners use 12 or 20 teeth, blades use flat knives Or 12-tooth cutter)
AWG22#ーAWG32# (12 per output, capacity 15.6K, straighteners use 12 or 20 teeth, blades use flat knives Or 12-tooth cutter)
AWG16#-AWG20# (one output 4-7, capacity 1.3K, straightener with 7 teeth, blade with 7 teeth cutter)
|
| Size |
length 2800x width 820x height 2100 (mm) |
| Weight |
About 220KG |
Features:
Optional function: machine configuration: 1, paralleling, arranging, twisting function;
2, paralleling and splitting function,
3, wire inlet device (electric pay-off rack, pay-off reel)
4, take-up conveyor belt
5, pressure detection
