RS-950 High Speed Auto Wire Cutting And Stripping Machine

Name: RS-950 High Speed Auto Wire Cutting And Stripping Machine
Brand: RKENS
SKU: RS-950/120/1500
Rating: 4.7 (172 reviews)

Place of Origin	China
Brand Name	RKENS
Model Number	RS-950/120/1500

Product Details

Name:

High Speed Wire Cutting Stripping Machine

Moter:

Servo Motor

Product Description

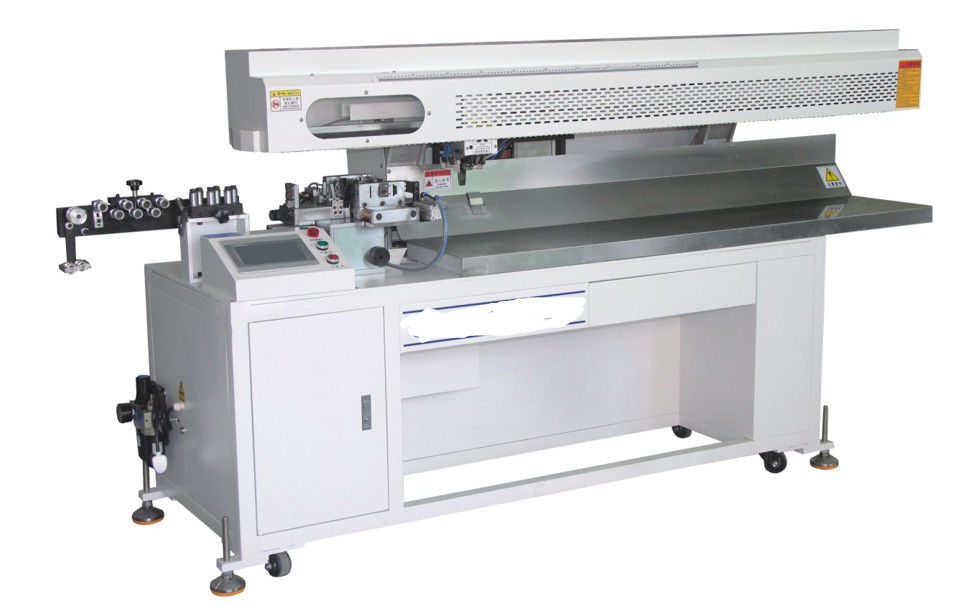

High Speed Auto Wire Cutting And Stripping Machine

Intro:

This machine uses imported servo motor to control cutting and stripping wire process. So more accurate. It has wire testing device, low air pressure, stuck cylinders, abnormal motors, counting feature. It can automatically stop when abnormal is found, also will display the problem on screen. This can help find problems easily.

This machine is easy to operate and adjust. Can be equipped with RF-500 line splitter , to complete the wire splitting, cutting and stripping actions , to improve production efficiency.

Usage:

It can cut and strip. Fast speed.

Parameters:

Model	RS-950	RS-1500	RS-2000
Size	1700x750x150MM	2300x780x165MM	3100x780x165mm
Weight	400	480
Power	1.0KW	1.5KW
Power supply	AC 220V	AC 220V	AC220V
Strip length	3-30mm(can be customized when longer than 30mm)	3-30mm(can be customized when longer than 30mm)	3-30mm(can be customized when longer than 30mm)
Cut length	42-99999mm	42-1000000mm	42-1000000mm
Operation mode	Single stroke or continuous action	Single stroke or continuous action	Single stroke or continuous action
Wire size	AWG10-AWG28, Flat ribbon cable	USB,AC, RGB,1394,DC,PVC wires	USB,AC, RGB,1394,DC,PVC wires
