Wire Cut and Strip Machine
>
|
| Place of Origin | China |
| Brand Name | RKENS |
| Model Number | RS-8500H |
Round Multi Conductor Cable Cutting And Stripping Machine For Max 10MM OD
Usage:
RS-8500H multi core cable stripping machine is specially for round multi-core cables .Cutting and stripping both outer jacket and inner insulation for two ends at same time. Cut, strip both ends. Cutting and stripping cable can be finished at same time. Fast speed and save labor.
Parameters:
| Model | RS-8500H multi-core cables cable cutting and stripping machine |
| Power supply | 220V/110V 50HZ/60HZ |
| Available wires | Cable. PVC cable, multi core cable, and more |
| Cable outer diameter | 3-10mm |
| Cut length | 0.1-99999.9mm |
| Outer jacket strip length | 0.1-250mm for front end, 0.1-70mm for rear end |
| Inner insulation strip length | 0.1-15mm for front end, 0.1-15 for rear end |
| Window strip | can be customized |
| Cutting tolerance | Within 0.002*Length |
| Cable cores | 2-8 cores |
| Efficiency | 1100-850PCS/H When length =200-1000mm |
| Size and weight | 650x580x460mm 70KG |
| Wire feeding mode | Belt feeding, no pressing mark on cable |
| Note | Can be customized for special cable |
Features:
1. Touch panel 7 inch LCD display
2. Length can be amended easily . Accurate
3. Unique appearance.
4. Cut and strip both jacket and insulation.
Strip samples:

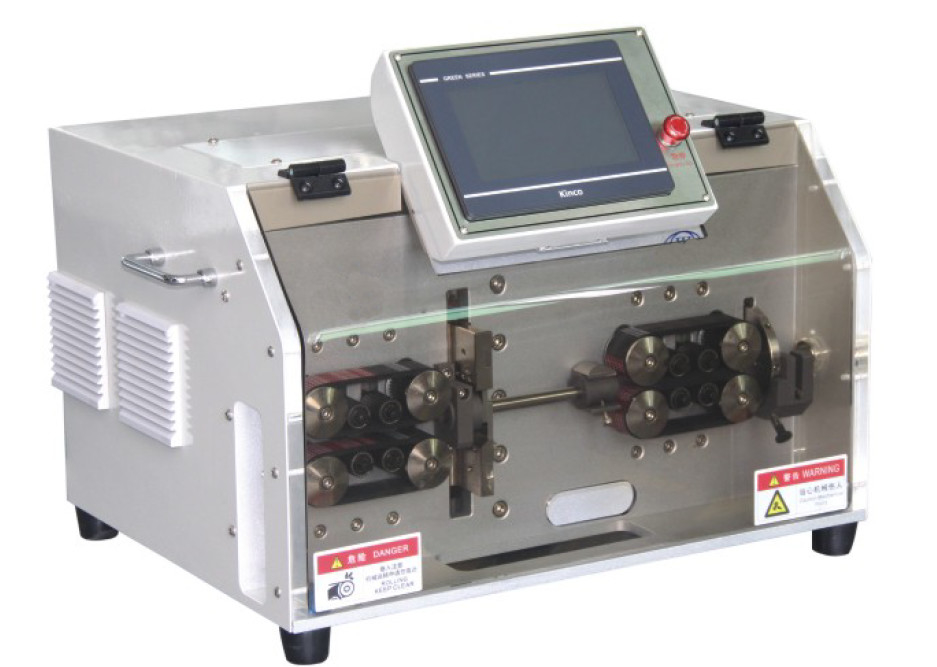

Pictures of cable cutting and stripping machine
