RS-10PF Programmable Jumper Wire Cutting And Bending Machine
  • RS-10PF Programmable Jumper Wire Cutting And Bending Machine
  • RS-10PF Programmable Jumper Wire Cutting And Bending Machine

RS-10PF Programmable Jumper Wire Cutting And Bending Machine

Place of Origin China
Brand Name RKENS
Model Number RS-10PF
Product Details
Name:
Jumper Wire Cutting And Bending Machine
Usage:
Cut And Bend Wires
Availble Wire:
For Max 6sqmm Wires
Power Supply:
220V 110V
Product Description

RS-10PF Programmable Jumper Wire Cutting And Bending Machine



Intro:

RS-10PF is a programmable wire cut and bend machine. It can work for jumper wires, or single core wire with insulation.



Suitable:

Machine can work for wires within 10sqmm. The cutting and bending size can be adjustable.



  • For standard machine, size L1>=10mm, H1/H2>=10mm. Adjustable.
  • We can customize machine for smaller L and H1/H2.  L1>=6mm, H1/H2>=3.5mm

RS-10PF Programmable Jumper Wire Cutting And Bending Machine 0

RS-10PF Programmable Jumper Wire Cutting And Bending Machine 1



Parameters:

Model RS-6PF RS-10PF
Size L530xH470xW340MM L600xH550xW450MM
Weight 36KG 40KG
Display English Touch Screen English Touch Screen
Power Supply 220V/110V 50/60HZ 220V/110V 50/60HZ
Power 800W 1000W
Cut length 0.1-99999mm 0.1-99999mm
Strip length 0.1-30mm 0.1-30mm
Bend length Adjustable Adjustable
Bend Mode Clockwise, counterclockwise, adjustable bending angle, can be bent up and down, the same line can be bent at any angle
Suitable Wire 0.1-6 mm2 0.1-10 mm2
Blade material Imported high speed steel Imported high speed steel
Drive Mode 2 wheels 4 wheels
Bend section 10 10
Storage 200 200
Capacity 800-1500PCS 800-1500PCS

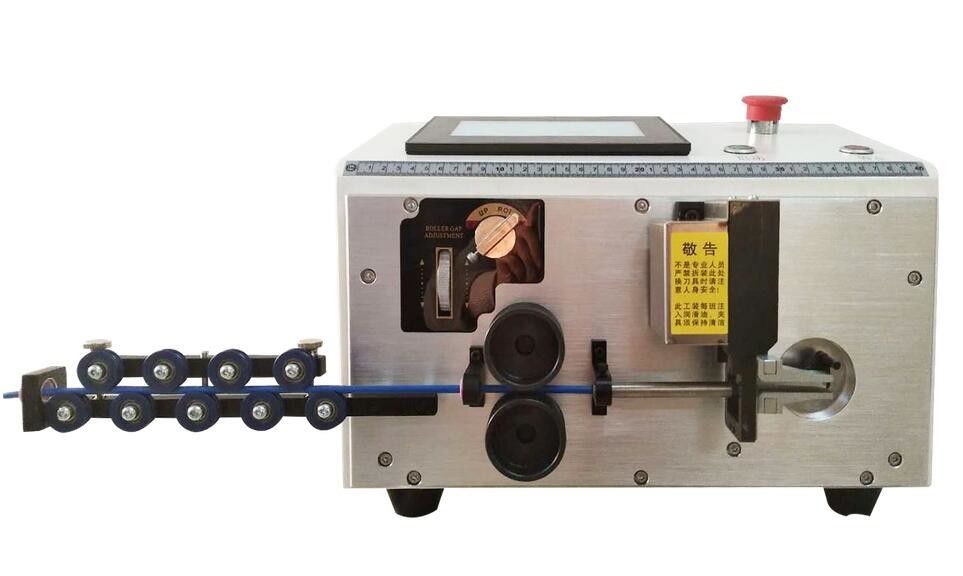

Machine structure:



1. Power Switch

2. Start Button: To start machine

3. Complete button:During operation, after completing cutting wires, stop.

4.7'' LCD display: For setting function.

5. Pneumatic push button of the entry wheel: the pusher is pushed down by the button, and the pusher is pressed down by the button;

6.Feeding wheel: conveying wire;

7. Catheters and catheter holders: Catheters for passing wires and post-peeling concession;

8. Tool post: cutting and stripping functions;

9. Bending clamp: strip the moving clamp and bending bracket after stripping;

10. Bending rod: the bending angle can be adjusted arbitrarily in the number of sections interface;

11, straightener: straighten the wire;



RS-10PF Programmable Jumper Wire Cutting And Bending Machine 2



Cut, strip and bend samples

RS-10PF Programmable Jumper Wire Cutting And Bending Machine 3
