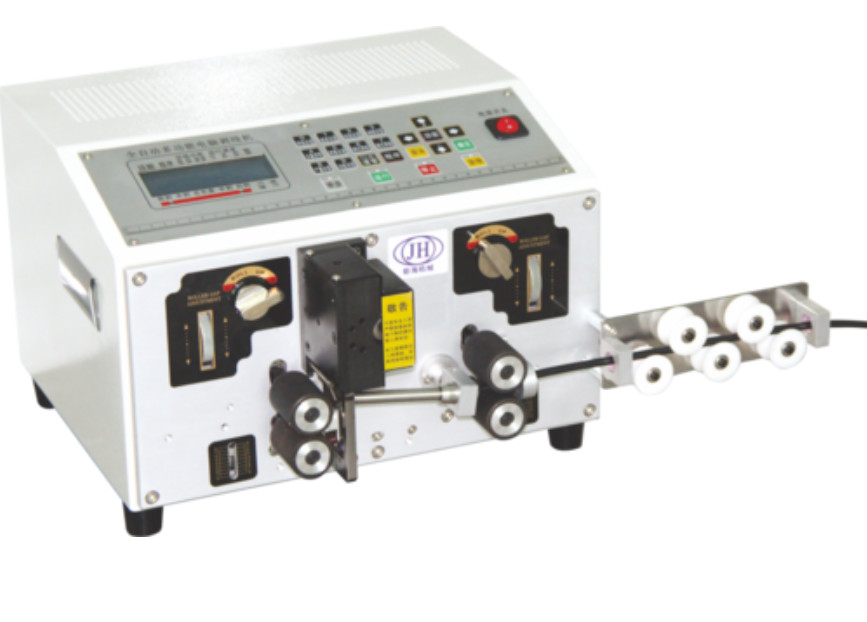

Automatic multi-conductor cable cutting and stripping machine RS-360

China Automatic multi-conductor cable cutting and stripping machine RS-360 supplier
Automatic multi-conductor cable cutting and stripping machine RS-360 supplier Automatic multi-conductor cable cutting and stripping machine RS-360 supplier

Large Image :  Automatic multi-conductor cable cutting and stripping machine RS-360

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: RS-360

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1
Packaging Details: Carton box or wooden case
Delivery Time: 3-5 days
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Name: Muti-conductor Cable Cutting Stripping Machine Usage: For Muti-conductor Cable , Both Round Or Flat

Automatic multi-conductor cable cutting and stripping machine RS-360

For both round multi-conductor cable and flat double-core cable.



1. Multi-functional wire cutter and stripper, High accuracy, Fast speed

2.Suitable for round muti-core cable within 7.5MM OD.

3. Cut and strip function

4.With big 60/100 stepping motor and 12MM conductor, for different size of cables



Parameter

Model: RS-360 automatic wire cutter and stripper

Size:450*450*360mm

Weight:40KG

Power Supply:AC110V/220V 50/60Hz

Cut length:1-9999MM

Strip length: Front end: 0-150MM, rear end: 0-50MM

Suitable cable: Muti-core cables, power cable/cord and electrical wires,etc

Cable OD:Max 7.5MM



Cutting and stripping samples.

Automatic multi-conductor cable cutting and stripping machine RS-360

Automatic multi-conductor cable cutting and stripping machine RS-360



For round cable, if you want to strip inner insulation, you need below pneumatic wire stripper..



Automatic multi-conductor cable cutting and stripping machine RS-360
