Intro:

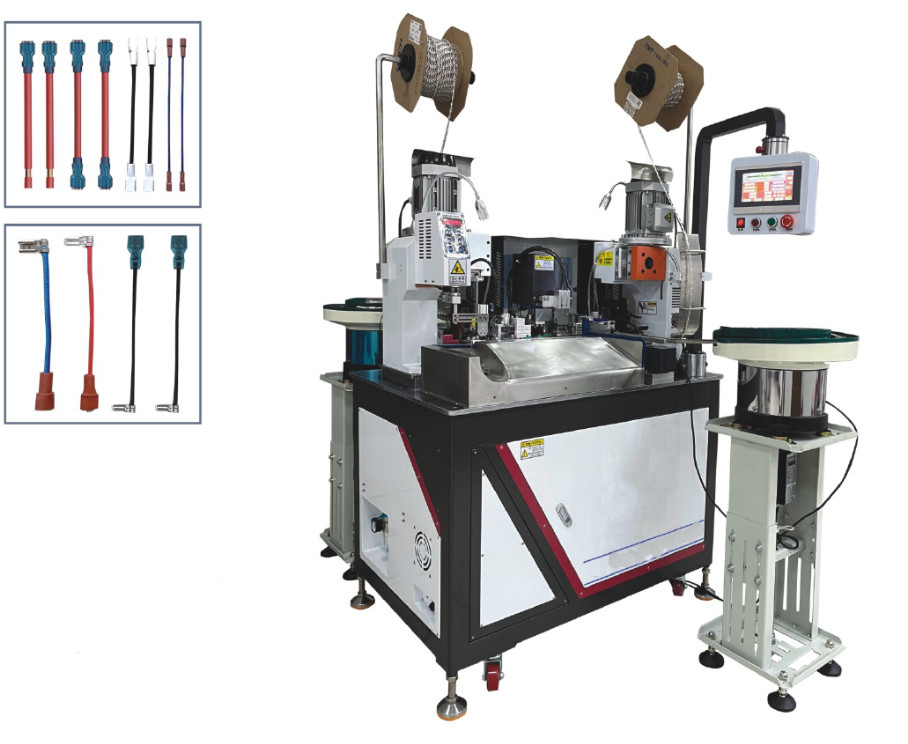

RS-7701SH can manage wire cutting, stripping, crimping terminals at both ends, inserting sleeve at both ends and pulling into place.

Feature description:

1. Realize ultra-thick wire and ultra-thick terminal termination;

2. Realize the crimping and sheathing of 187/250 straight terminals, and pull them into place, saving a lot of labor;

3. The same type of sheaths can share the same vibration plate, which greatly improves the versatility;

4. The machine uses servo motor: 6 sets of servo;

5. Without the sheath end, the flag-type terminal can be crimped, solving the crimping problem of the flag-type terminal.

Specification:

Model: RS-7701SH Fully automatic double-end termination and double-end sheathing machine

Power supply: AC220V 50/60HZ

Function: wire cutting, stripping, crimping terminals at both ends, inserting sleeve at both ends and pulling into place.

Production capacity: only cutting and termination 3000 wires/hour: double-end termination and one-end sheathing 2300 wires/hour: double-end termination and double-end sheathing 1800-2300 wires/hour: (the longer the wire, the less capacity)

Processable wire range: AWG24#24-AWG12# 0.3mm-3 square mm

Cutting length: 60mm-9999mm (800MM and above need to be equipped with a conveyor belt)

Stripping length: 0mm-15mm

Cutting accuracy: ±0.2mm+cut length×0.2% or less

Crimp capacity: 3.0T

Air pressure: 5-7kg (need to use a clean and dry air source)

Mechanical dimensions: length 1150×width 780×height 1860mm (excluding protrusions)

Optional products: 1. Cassette mold and blade; 2. Vertical wire feeder; 3. Shaft-type wire release: 4. Long-line conveyor belt; 5. Pressure management system

Main component brands: Taiwan Hiwin screw rod, Taiwan Yadac cylinder solenoid valve, Lesai closed loop + servo motor, Taiwan Hiwin HVN slide rail, Japanese imported bearings
