Semi-automatic LCD Touch Screen Soldering Machine
  • Semi-automatic LCD Touch Screen  Soldering Machine

Semi-automatic LCD Touch Screen Soldering Machine

Place of Origin China
Brand Name RKENS
Model Number RS-780
Product Details
Name:
Pneumatic Soldering Machine
Usage:
Wire Soldering,pcb Soldering, Etc
Product Description

LCD Touch Screen Semi-automatic Soldering Machine



Machine video: https://youtube.com/shorts/gRWAkbanz20?feature=share



Intro:

1. RS-780 soldering machine is widely used in the field of wire harness welding, data cable USB . microUSB . miniUSB . Apple
Head. Type-c. HDMI plug docking. Motor wire, etc., wire harness welding. PCB board. LED Light/Light Strip/Light Board. Electronics
Components, switches, adjustable resistors, electronic cigarettes, rectifier bridges, waterproof connectors and other connector welding, widely applicable in welding fields
Strong ability, easy to learn and debug and install
2. RS-780 adopts HHZ-338H-4.3-inch PLC touch screen all-in-one machine, with timely and reliable response and anti-interference. support system
Continually updated.
3. The RS-780 soldering machine is divided into two versions, electric and pneumatic. The system can support the two versions to switch freely at the same time, clean
The soldering iron tip mode can also support free switching of different needs, which is flexible and changeable. The function is more advanced.
4. After the parameters are messed up due to improper operation, the default parameters can be restored to the factory data, and the factory settings can be restored



Parameters:

1. Power supply: single-phase AC 220V, rated voltage 210V-240V 50/60HZ (110V-24V can be customized
pressed money)
2. Air pressure: 0.2-0.6MPa (need to use clean and dry air)
3. Temperature: (-10)-(+60°C) no wind, no dust
4. Model: CY-668-QG
5. Dimensions: length 410*width 350*height 500MM
6. Weight: about 15KG

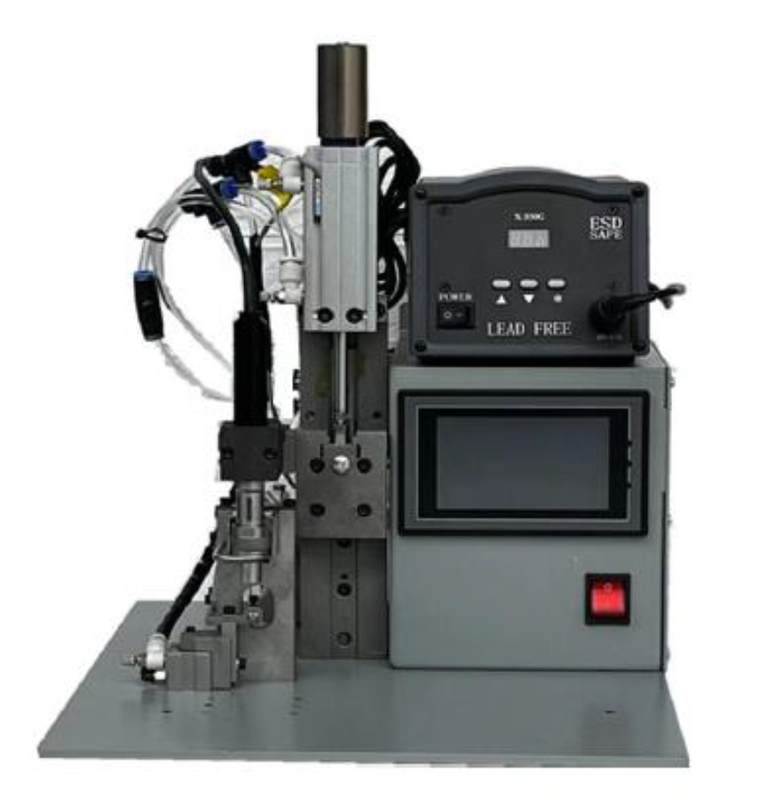

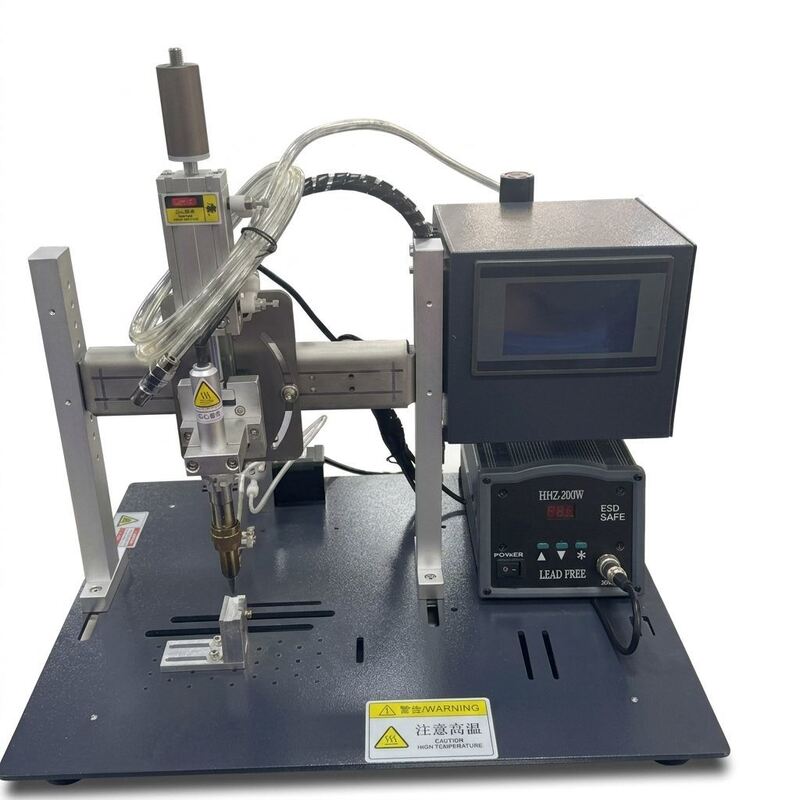

Machine pictures

Semi-automatic LCD Touch Screen  Soldering Machine 0

Semi-automatic LCD Touch Screen  Soldering Machine 1
