Two Working Platform PCB Soldering Machine For PCB Cable Connection Soldering
  • Two Working Platform PCB Soldering Machine For PCB Cable Connection Soldering

Two Working Platform PCB Soldering Machine For PCB Cable Connection Soldering

Place of Origin China
Brand Name RKENS
Model Number YS-HX542
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden box
Delivery Time
12-15 days
Payment Terms
T/T
Supply Ability
300 sets per month
Product Description

Two Working Platform PCB Soldering Machine For PCB Cable Connection Soldering

Intro:
YS-HZX542 is dual-platform automatic soldering equipment that replaces manual soldering. With this equipment, there is no need to worry about skilled workers. LCD touch screen to program soldering routes, soldering dots. Soldering time and tin quantity can be set.

Suitable for welding products:

PCB soldering machine is suitable for PCB board plug-in welding, Wire welding,Hardware component welding and more.
Widely used in Toys, home appliances, automotive electronics, LEDs, etc.Connectors, IT communications, vehicle antennas, etc. And Electrical appliances, hardware accessories, etc.

Parameters:


Basic parametersSpecification&ModelYS-HX542
Outside dimensions680(L)*750(W)*850(H)(mm)
Weight63Kg
Using enviromentPower sourceAC 220V/50Hz
AirClean0.4~0.6kpa
Out connection tube diameter8mm
Working environment0-40℃ Humidity 20-90% (no condensation)
Allow minimum desktop size800mm×800mm
Temperature Control SystemHeatingvortex 200W/300W
Range of temperature180-450℃
Number of irons1
Motion SystemNumber of axes5
Drive systemStepper motor, synchronous belt
Workpiece sizeX-axis500
Y-axis400
Z-axis100
U-axis360°
Maximum speedX/Y-axis500mm/s
Z-axis250mm/s
Repeatability accuracyX/Y/Z-axis±0.02mm
Maximum weight10Kg
Program ModeTeaching formatOffline/Online
LanguageChinese/English
Number of programs9999
Welding parameter rangeUse tin wire range (diameter)0.6mm--1.5mm
Single point welding time (related to the size of the solder joint)0.2s--100s

Features:

1. English LCD touch screen display, can program easily.

2. Programmable for soldering routes.With points, lines, arcs, circles, irregularly curved continuous input program and any position welding
3. Solder feeding amount is adjustable. Adjust the temperature, time and the speed of tin wire
4. High-speed precision stepper motors

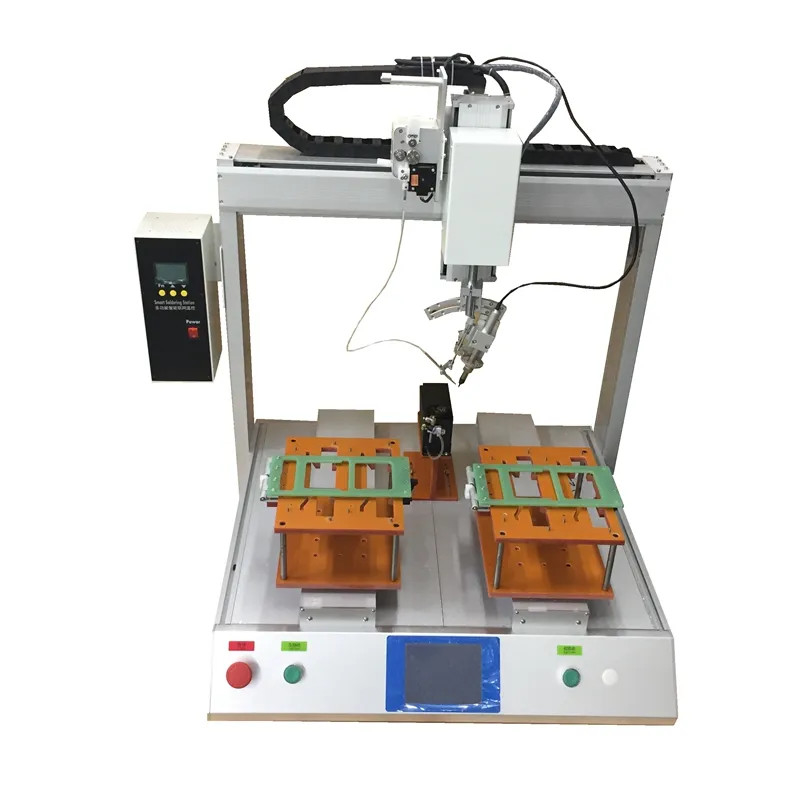

Pictures of automatic soldering machine
