Automatic 4 Axis Dual-Platform PCB Soldering Machine Wire Soldering Machine
  • Automatic 4 Axis Dual-Platform PCB Soldering Machine Wire Soldering Machine

Automatic 4 Axis Dual-Platform PCB Soldering Machine Wire Soldering Machine

Place of Origin China
Brand Name RKENS
Model Number YS-HX542
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden box
Delivery Time
12-15 days
Payment Terms
T/T
Supply Ability
300 sets per month
Product Description

Automatic 4 Axis Dual-Platform PCB Soldering Machine Wire Soldering Machine



Intro:

It is an automatic soldering equipment that replaces manual work. With this equipment, there is no need to worry about skilled workers. YS-HX331 is one  working platform operation, fast speed and save labor.



Suitable for welding products:



It is suitable for PCB board plug-in welding, Wire welding,Hardware component welding and more.

Widely used in Toys, home appliances, automotive electronics, LEDs, etc.Connectors, IT communications, vehicle antennas, etc. And Electrical appliances, hardware accessories, etc.



Parameters:



Basic parameters Specification&Model YS-HX542
Outside dimensions 680(L)*750(W)*850(H)(mm)
Weight 63Kg
Using enviroment Power source AC 220V/50Hz
Air Clean0.4~0.6kpa
Out connection tube diameter 8mm
Working environment 0-40℃ Humidity 20-90% (no condensation)
Allow minimum desktop size 800mm×800mm
Temperature Control System Heating vortex 200W/300W
Range of temperature 180-450℃
Number of irons 1
Motion System Number of axes 5
Drive system Stepper motor, synchronous belt
Workpiece size X-axis 500
Y-axis 400
Z-axis 100
U-axis 360°
Maximum speed X/Y-axis 500mm/s
Z-axis 250mm/s
Repeatability accuracy X/Y/Z-axis ±0.02mm
Maximum weight 10Kg
Program Mode Teaching format Offline/Online
Language Chinese/English
Number of programs 9999
Welding parameter range Use tin wire range (diameter) 0.6mm--1.5mm
Single point welding time (related to the size of the solder joint) 0.2s--100s

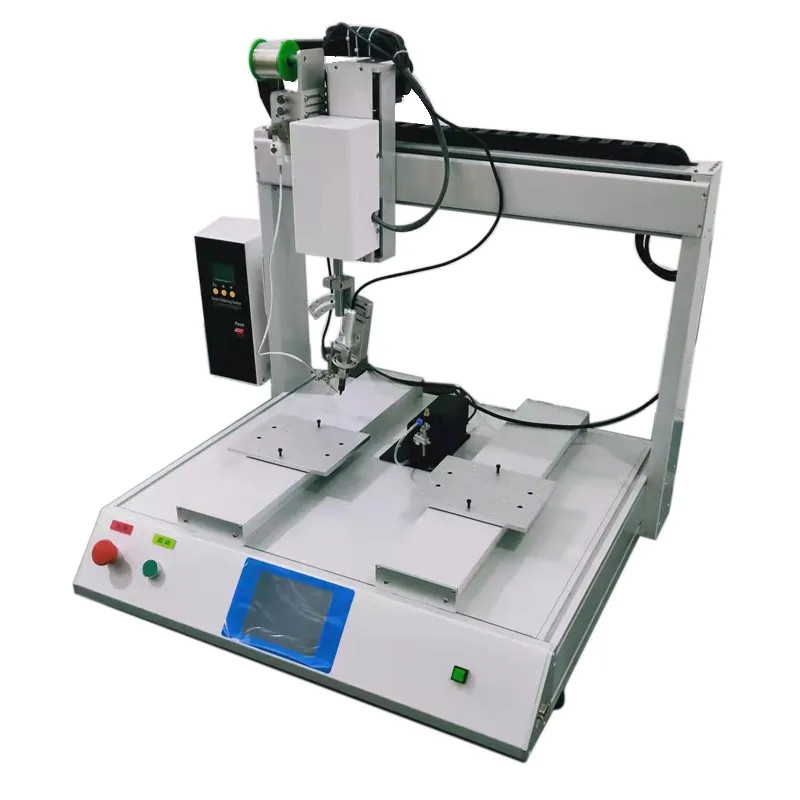

Pictures of automatic soldering machine
Automatic 4 Axis Dual-Platform PCB Soldering Machine Wire Soldering Machine 0
Automatic 4 Axis Dual-Platform PCB Soldering Machine Wire Soldering Machine 1

Soldering Samples
Automatic 4 Axis Dual-Platform PCB Soldering Machine Wire Soldering Machine 2
