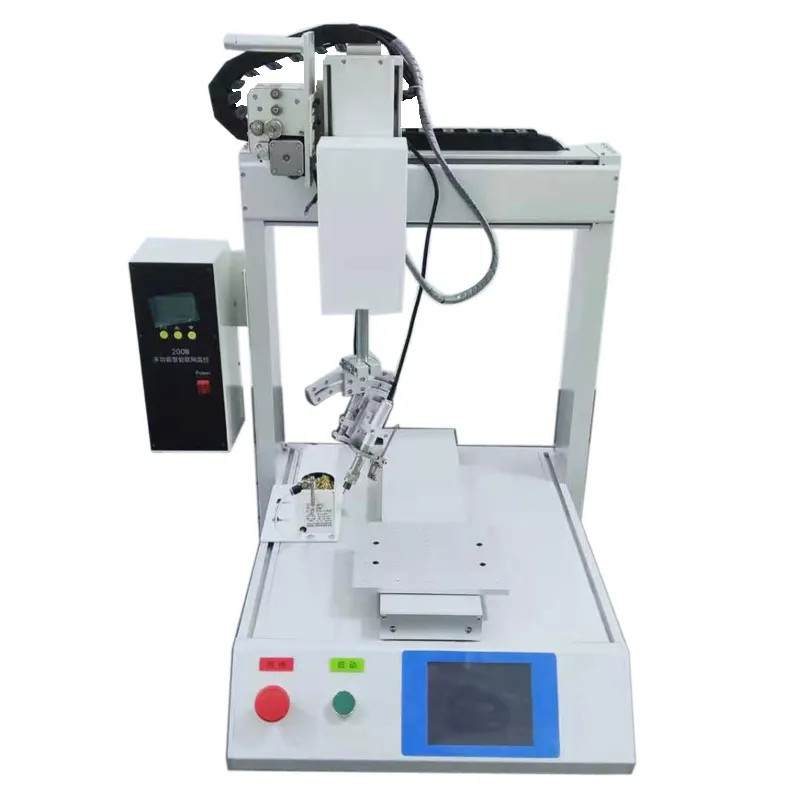

It is an automatic soldering equipment that replaces manual work. With this equipment, there is no need to worry about skilled workers. YS-HX331 is one working platform operation, fast speed and save labor.
Suitable for welding products:
It is suitable for PCB board plug-in welding, Wire welding,Hardware component welding and more.
Widely used in Toys, home appliances, automotive electronics, LEDs, etc.Connectors, IT communications, vehicle antennas, etc. And Electrical appliances, hardware accessories, etc.
Parameters:
Basic parameters
Specification&Model
YS-HX331
Outside dimensions
671mm×551mm×612mm
Weight
63Kg
Using enviroment
Power source
AC 220V/50Hz
Air
Clean 0.4~0.6kpa
Out connection tube diameter
8mm
Working environment
0-40℃ Humidity 20-90% (no condensation)
Allow minimum desktop size
600mm×500mm
Temperature Control System
Heating
vortex 200W/300W
Range of temperature
180-450℃
Number of irons
1
Motion System
Number of axes
5
Drive system
Stepper motor, synchronous belt
Workpiece size
X-axis
300
Y-axis
300
Z-axis
100
U-axis
360°
Maximum speed
X/Y-axis
500mm/s
Z-axis
250mm/s
Repeatability accuracy
X/Y/Z-axis
±0.02mm
Maximum weight
10Kg
Program Mode
Teaching format
Offline/Online
Language
Chinese/English
Number of programs
9999
Welding parameter range
Use tin wire range (diameter)
0.6mm--1.5mm
Single point welding time (related to the size of the solder joint)
