Auto Double-End Crimp Terminal One-End Insert Plastic Connectors Dip Tin Machine

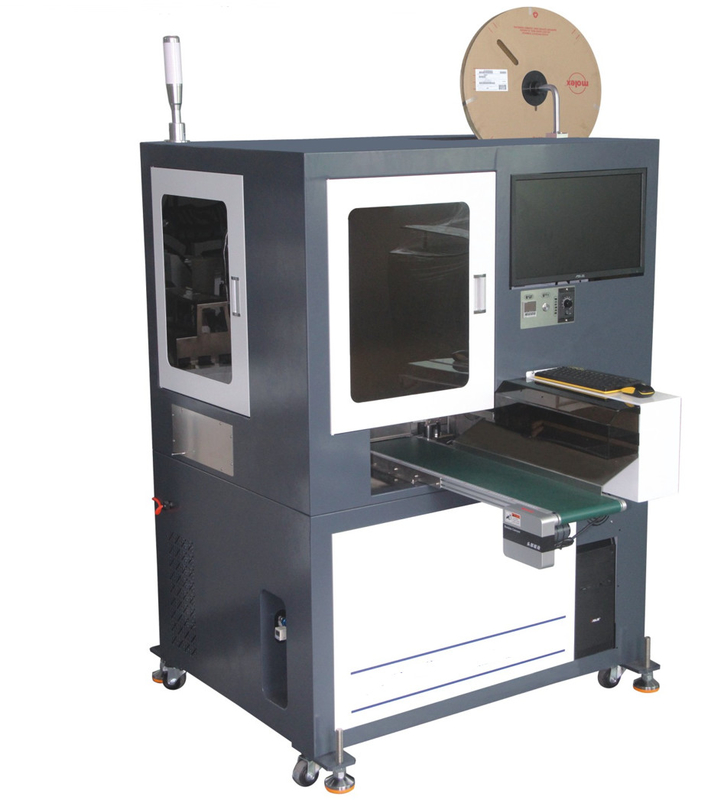

Large Image : Auto Double-End Crimp Terminal One-End Insert Plastic Connectors Dip Tin Machine

Product Details:

Place of Origin:	China
Brand Name:	RKENS
Model Number:	RS-007

Contact Now

Detailed Product Description

Auto One-end Terminal Crimping And Inserting Connector Machine, Wire Cutting Stripping Tinning Machine

Intro:

RS-007 is a full automatic wire cutting stripping double-end crimping and one-end inserting plastic connectors machine. All process can be finished by one machine.

Note: This machine is customized. You can not change termials and connectors.

Parameters:

Function	Wire cutting, single-ended stripping, double-ended termination, single-ended plastic housing; the other end is half-stripped/fully stripped, terminated or can be twisted and tinned
Power Supply	Power supply: AC 220V/110V 50 / 60HZ
Optional Feature	(twisted wires, triple twisting) at the same time, two groups of 4 cores or more, single pair, cable, CCD detection, pressure detection
Detect function	whether there are wires, whether the wires are knotted, whether there are terminals, whether there are plastic shells None, air pressure alarm, motor abnormality, etc.
Speed	700 times / H (12 terminals / times)
Cut length	60MM-800MM (can be customized)
Air Source	0.6-0.8MPa (clean and dry air source is required)
Available Wire	28AWG-20AWG
Rear Side Strip length	1-10MM (half or full stripping)
Dip Tin length	1MM-10MM
Twist wires length range	Front end untwisted: 6MM × twisted wire length, minimum twisted wire length in the middle: 20MM, rear untwisted: 40MM
Size	3800 × width 1800 × height 2200 (MM)
Weight	about 650kg (gross weight after packing the wooden box: about 860KG)

Features:

Realize the integration of automatic wire feeding, cutting, peeling, twisting, end punching, shell insertion, and quality monitoring;
Only a few modular replacement fixtures can easily replace various plastic shells;
Suitable for electronic Processing of wire, flat wire, parallel wire, halogen-free wire, silicone wire, Teflon wire, braided wire, etc., suitable for 1.0 terminal, 1.25 terminal, 1.5 terminal, PH, XH, VH series terminals; Servo control, Pneumatic components, guide rails, etc. use world-renowned brands to ensure the overall performance of the equipment is stable;
Optional terminal pressure management device, CCD visual imaging system, easy to operate, quality assurance;
With strong research and development capabilities, it can intelligently upgrade and expand equipment functions
