Automatic round multi-core cable cutting and stripping machine RS-3606C

China Automatic round multi-core cable cutting and stripping machine RS-3606C supplier
Automatic round multi-core cable cutting and stripping machine RS-3606C supplier

Large Image :  Automatic round multi-core cable cutting and stripping machine RS-3606C

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: RS-3606C
Contact Now
Detailed Product Description
Name: Automatic Round Multi-core Cable Cutting And Stripping Machine Available Cable: Round Multi-core Cable
Cable Dia: Max 7mm Strip Length: : 0.1-250mm For Front End, 0.1-70mm For Rear End

Automatic Multi-conductor cable cutting stripping machine for outer jacket and inner wires



Youtube Video: https://youtu.be/3kba6eCT2Bk



Usage:



This machine can works for round multi-core cables, can cut, and strip both outer jacket and inner insulation for two sides at same time. Cut, strip both ends.



Parameters:



Model RS-3606C cable cutting and stripping machine for multi-core cables
Power supply 220V/110V 50HZ/60HZ
Available wires 1-7mm OD
Cable cores 2 conductors / 3 conductors /4 conductors/ 5 conductors
Cut length 0.1-99999.9mm
Outer jacket strip length 0.1-250mm for front end, 0.1-70mm for rear end
Inner insulation strip length 0.1-15mm for front end, 0.1-15mm for rear end
Window strip can be customized
Weight 36.5KG
Strip accuracy Mute hybrid stepping motor 0.0mm
Efficiency 100mm/500mm/1000mm(1300/1100/900pcs per hour)





Features:

1. Touch panel 4.3 inch LCD display

2. Length can be amended easily . Accurate

3. Unique appearance.

4. Cut and strip both jacket and insulation.



Strip samples:

Automatic round multi-core cable cutting and stripping machine RS-3606C

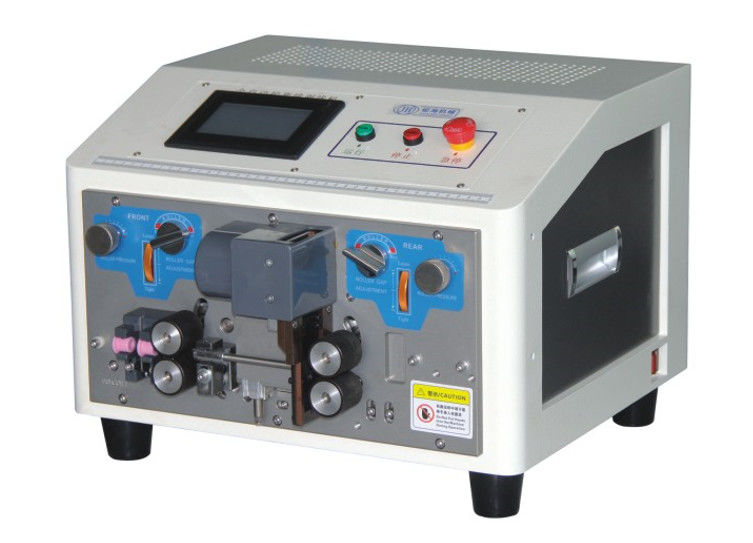

Pictures of cable cutting and stripping machine

Automatic round multi-core cable cutting and stripping machine RS-3606C
