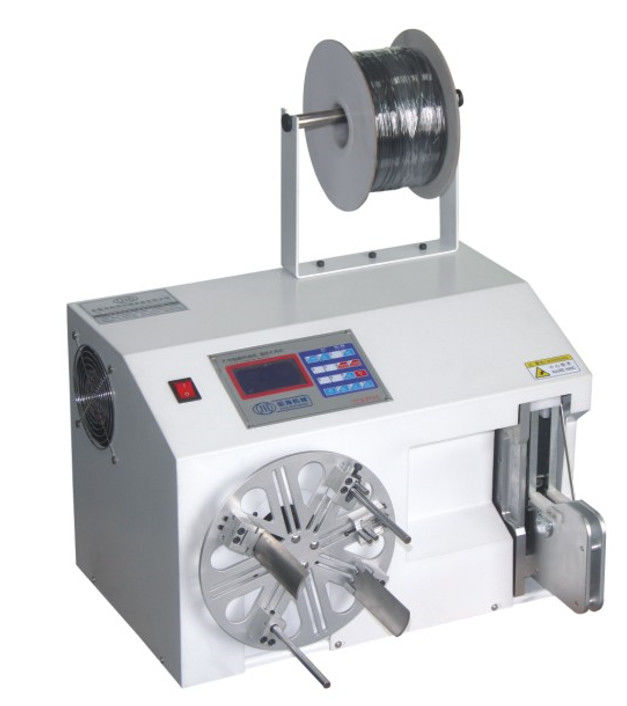

Automatic winding&bunding machine takes advanced technology and precision manufacturing,winding and tieing AC cable ,DC cable, data line, vedio cable, other electric wires and twisted bundles.Wire heads can be on one side or two sides. Winding and tieing are complete at one time.
The machine is controlled by PLC or controller and touch screen display. Speed of winding cable, number of circle can be set up at random according to users’ requirement.
The machine is suitable for AC power cord, DC power cord, headphones line, audio line, USB cable, video line, HDMI hd line, etc all kinds of transmission line with plastic bags core twisted into beam, also can be used on other tape to use packet core sealing glue.
Name |
Automatic coil binding machine , safe cable binding machine |
Power voltage | AC220V/110V |
Power supply | 220V/50Hz, 105W |
Weight | 45Kg |
Winding Dia | Adjustable according to cable length |
Winding Circle | Adjustable according to cable length |
Binding length |
80-120mm φ8-18mm 120-150mm φ18-28mm |
Binding coil number | Can be set, 3 laps recommended |
Cable tie | Wrapped core tie |
Safety device | Fuse, fault alarm downtime |
Size | 405*320*320mm |
1.Cable tie machine can automatically wind and tie the power cable ,AC/DC cable ,earphone cord and the wire used by the computer
2.The machine solves the problems caused by hand-tie ,High efficiency
3.wind and twist cables automatically
4. English label and operation language.
5.This work efficiency is three to four times faster than working by hand. Ending the history of huge labour and hurting fingers as well as saving high cost of owner
