Auto Wire Harness Nylon Tie Tying Machine With Handheld Tying Gun
  • Auto Wire Harness Nylon Tie Tying Machine With Handheld Tying Gun

Auto Wire Harness Nylon Tie Tying Machine With Handheld Tying Gun

Place of Origin China
Brand Name RKENS
Model Number RS-S06
Product Details
Name:
Auto Wire Harness Nylon Tie Tying Machine
Power Supply:
220V/110V 50HZ/60HZ
Product Description
Auto Wire Harness Nylon Tie Tying Machine With Handheld Tying Gun

Intro:
This auto tying machine is controlled by PLC system. With touch screen to set parameters, and can auto feeding ties with vibraion bowl feeder. It has handheld tying gun. Can auto feed ties , cut ties. Fast feeding and tying. Save labor. We also have table type nylon cable tying machine.

Parameters:

Model RS-S06
Power Supply

Main Machine: AC220V, 50/60HZ

Tying Gun: DC 24V

Power 1000W
Size Main machine:L700xW520xH600MM
Weight Main machine: 70KG Gun: 0.7KG
Action Cycle 0.8S-1.2S/PC
Min Wire harness diameter 2.0MM
Max Wire harness diameter 22MM
Display mode Touch Screen
Air pressure 0.5MPA
Tie spec 2.5x100MM
Features:

1.The disordered bulk cable ties flow into random vibration plate, cable ties piped through to tips
2.Pull the trigger, automatic feeding, tape, tightening, cutting, polishing wastes and all other actions;
3.0.7 seconds to complete all actions including feeding, tape, tightening, cutting, polishing wastes, also including auxiliary time, the whole cycle a total of about 1.3 seconds.A machine can replace 7-8 workers. A year can save wage costs over 20 million;
4.Waste collected automatically in a waste box via a dedicated recovery system (optional);
5.Hand held tip lightweight ,compact design grip, easy to hold, long-term use will not feel tired;
6.Tying the intensity or tension can be adjusted by the knob;
7.Host body own PLC control system, touch screen Chinese /English display, simple operation;
8.In automatic production line can be conjunction with robot to achieve fully automatic cable tie,Also it can be fixed to the table using as the desktop cable tie machine.

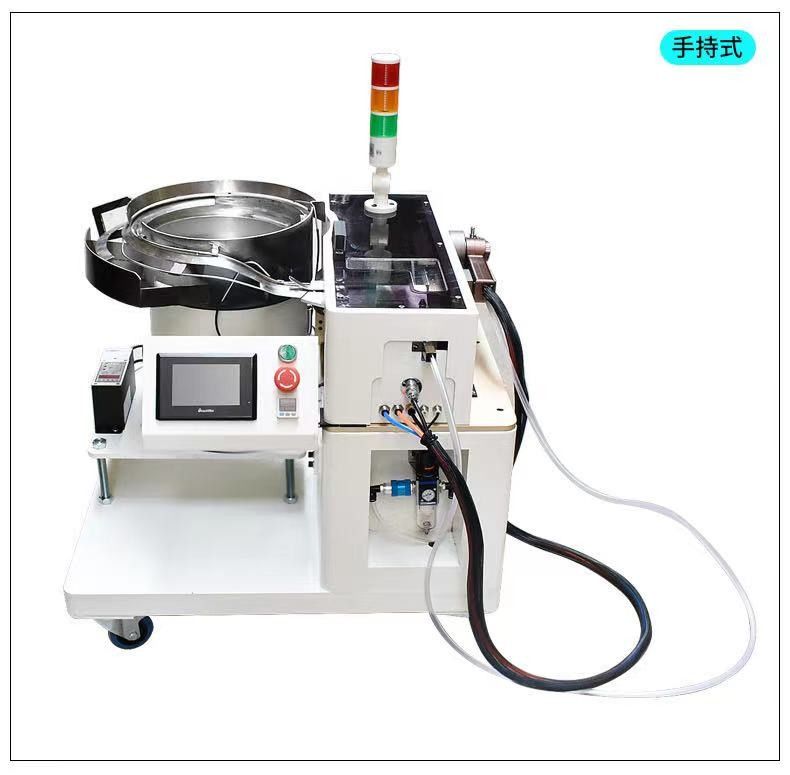

Tying Machine picture

Auto Wire Harness Nylon Tie Tying Machine With Handheld Tying Gun 0

Tying Samples
Auto Wire Harness Nylon Tie Tying Machine With Handheld Tying Gun 1
