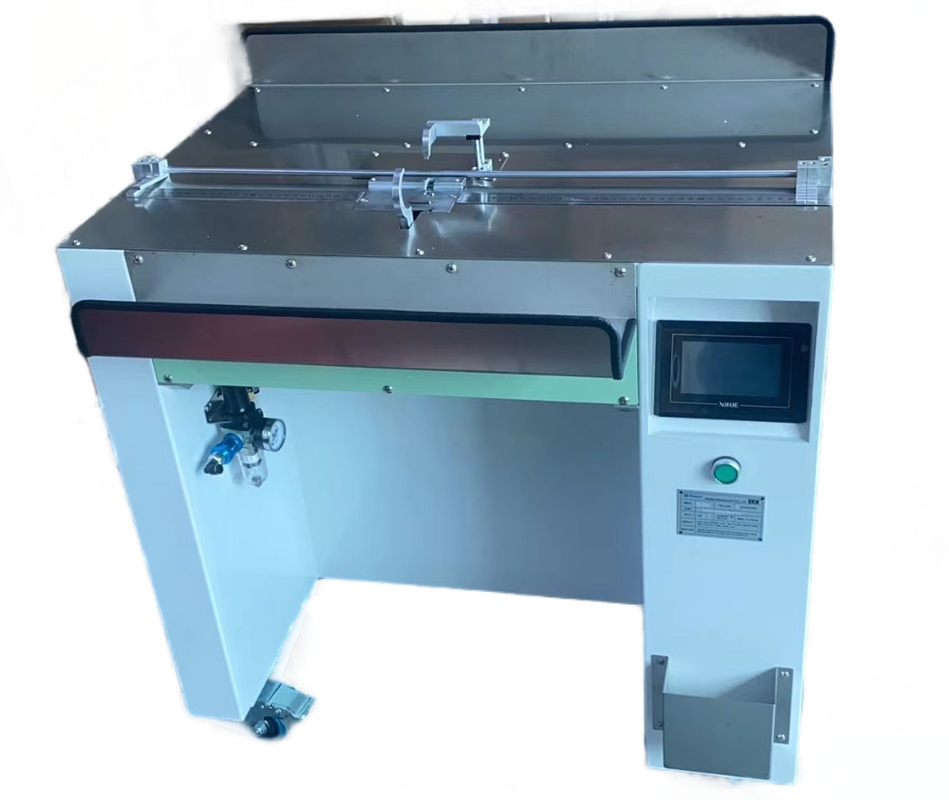

RS-600C Semi-Automatic Nylon Tie Cable Tying Machine For Wire Harness Cables Tying
  • RS-600C Semi-Automatic Nylon Tie Cable Tying Machine For Wire Harness Cables Tying

RS-600C Semi-Automatic Nylon Tie Cable Tying Machine For Wire Harness Cables Tying

Place of Origin China
Brand Name RKENS
Model Number RS-600C
Product Details
Name:
Semi-Automatic Nylon Tie Cable Tying Machine For Wire Harness Cables Tying
Suitable:
For Irregular Head Nylon Ties
Payment & Shipping Terms
Minimum Order Quantity
1SET
Packaging Details
Wooden case
Delivery Time
7-20 days
Payment Terms
T/T, Western Union
Supply Ability
100 sets per month
Product Description

Automatic nylon tie cable tying machine,cable tie machine for wire harness and cables

Intro:

RS-600C is specially for irregular nylon ties, operator only needs to put the cable to correct position and then press foot pedal, then machine will finish the tying cable and cutting nylon tie process.

For standard nylon ties, we can make feeer bowl.



Suitable:



This machine is designed for binding all kinds of wire harness. Especially be suitable for bundling Inner wire harness of plane,Car,Train,Ship,Appliances,Telecom equipment,Toys etc. It is also suitable for goods fixing & packing.



Specifciation:

Model RS-600C
Applicable cable tie length Can be customized
Applicable cable tie width 3-5mm
Max strapping force 15N
Max. conduit diameter 11mm
Productivity 1200-1800pcs/hour
Power 0.75kw
Air pressure 0.6 Mpa
Noise level <70dBA
Electrical connection AC 220/110V/50/60HZ 750W
Starting System Pedal
After packing size and weight

840x700x1020mm(LxWxH), about 150KG



Feature:



1. Automation PLC touch screen control circuit, easy operation, good stability

2. Bulk of nylon cable ties automatic feeding, eliminating the tedious process of manual discharge;

3. Cable ties automatic wear locking and cut , saving time and effort, 1800pcs / hour, at least four times more efficiency;

4. Wide adaptation, can tie various linear or circular shape products(diameter greater than 30MM) , perimeter of tying parts can be adapted from 3-50MM

5. Digitally adjustable elastic Cable ties through touching screen, touch digital screen to adjust the end of cable ties left.

6. No need gas source.



Pictures of automatic nylon cable tie machine binding wire harness

RS-600C Semi-Automatic Nylon Tie Cable Tying Machine For Wire Harness Cables Tying 0

RS-600C Semi-Automatic Nylon Tie Cable Tying Machine For Wire Harness Cables Tying 1

RS-600C Semi-Automatic Nylon Tie Cable Tying Machine For Wire Harness Cables Tying 2
