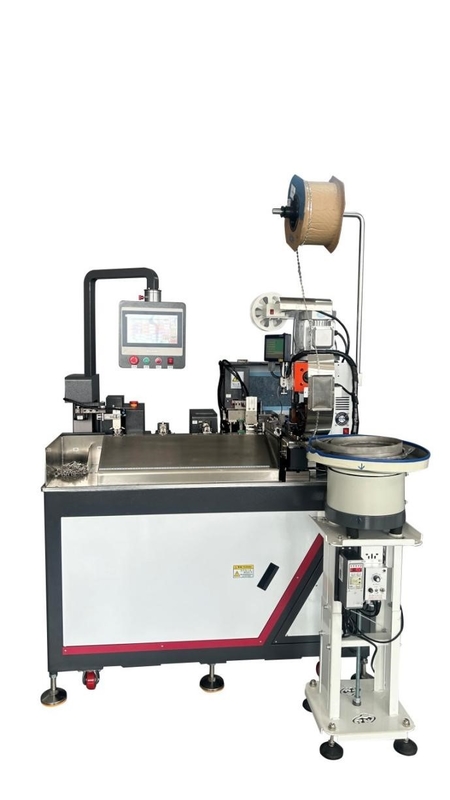

RS-1300NX Fully Automatic Single-End Crimp And Sleeve Insert One-End Twist&Tin Machine
Basic parameters:
Wire specification: 3122/AWG1015-12#-24#
Cut length: 60mm-9999mm (set value 0.1mm unit)
Stripping length: 0-18mm
Crimp force: 3.0T
Crimp stroke: 30mm
Applicable mold: general OTP mold
Detection device: air pressure detection, wire detection, crimp terminal detection, sheath detection, pressure monitoring (optional)
Control mode: single-chip microcomputer control
Function: wire cutting, single (double) end stripping, single end crimping, single end sheathing, single end tinning
Efficiency: 1600-2000 wires/hour
Compressed air: 0.5MPa-0.8MPa (170N/min)
Power supply: single-phase AC220V 50/60Hz
Dimensions: length 1300*width 820*height 1800 (mm)
Main component brands: Taiwan Hiwin screw rod, Taiwan Airtac cylinder solenoid valve, Leadshine servo motor, Dacheng slide rail, and Japanese imported bearings.
Cable processing samples:
Machine configuration:
Machine video:
