Semi-automatic cable sorting winding machine RS-70PR

Semi-automatic cable sorting winding machine RS-70PR

Usage:

This machine can wind cables in good order. For long cables, such as 10meters, 30meters cable winding.

Machine parameters

Model number: Semi-automatic sorting winding machine RS-70PR

Weight: 65KG

Volume: length 85CM*width 60CM*height 55CM

Winding speed: adjustable

Number of coils: adjustable

Input voltage: AC220V 50HZ/60HZ (special voltage can be customized)

Winding inner diameter range: within 300MM (fixed according to the product)

Main electrical components

1. Winding mechanism adopts: 110 stepping motor drive one set

2. The control system adopts: PLC+touch screen

3. Sorting sliding guide: Japan NSK

4. A set of self-made rack and case

5. Two sets of relays and one set of Omron sensors

6. A set of power supply system

Processing parts and fixtures

1. The important installation board adopts CNC computer gong CNC machining center

2. The processed parts are strictly in accordance with engineering design, milling machine, grinder, lathe, wire cutting, and heat treatment. Fitter and electrical installation and debugging.

3. The line fixture adopts: 304 stainless steel or steel disc

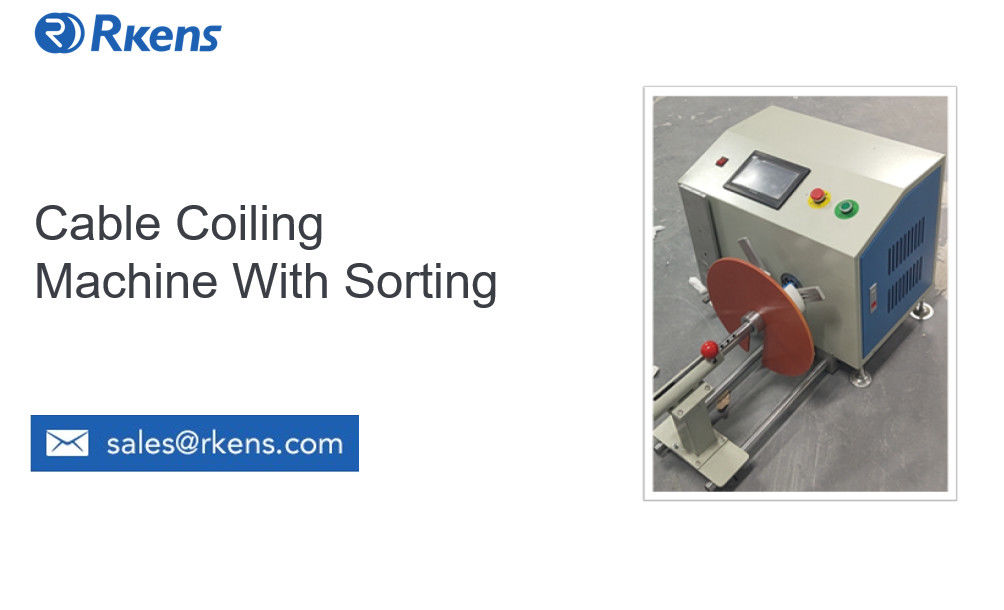

4. Machine photos

Note: For bigger power machine, there is no air cylinder to press the wire. Operator need manually to press
