Wire Stripping And Crimping Machine

China Wire Stripping And Crimping Machine supplier
Wire Stripping And Crimping Machine supplier

Large Image :  Wire Stripping And Crimping Machine

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: RS-1500T
Detailed Product Description

Wire Stripping And Crimping Machine



Semi-Automatic Wire Stripping And Crimping Machine , Strip Wire And Crimp

Intro:



RS-1500 is machine for wire stripping and crimping. Machine can do stripping and crimping at same time. One machine can work with several molds/applicator, and easily change molds. It can work in manual mode and automatic mode.

Suitable:

  • It works for stranded electric stranded wire
  • Terminal should be on tape and reel
  • Strip wire length: 1.0MM -10.0MM
  • Trip: 30MM



Specification:



Mode RS-1500 RS-2000
Name wire stripping and crimping machine wire stripping and crimping machine
Power Supply 220V 50HZ/60HZ 220V 50HZ/60HZ
Air source 0.3-0.4Mpa 0.3-0.4Mpa
Stripping length 1.0mm-10.0mm 1.0mm-7.0mm
Press Force 1.5 Ton 2.0 Ton
Trip 30mm 50mm
Tolerance 0.05-0.1mm 0.05-0.1mm
Size 500x350x730mm 530x400x830mm
Efficiency 3500pcs/h 3500pcs/h
Weight 70KG 80KG



Feature:



1. Super - mute design, use an inverter control, accuracy higher ,
establish automatic examination the foot step to act a status.

2. Can strip wire and crimp at same time, fast efficiency

3. Small in size, portable, and easy to move

4. Can be eqipped with several molds, and easily to change mold

Wire Stripping And Crimping Machine



Wire Stripping And Crimping Machine

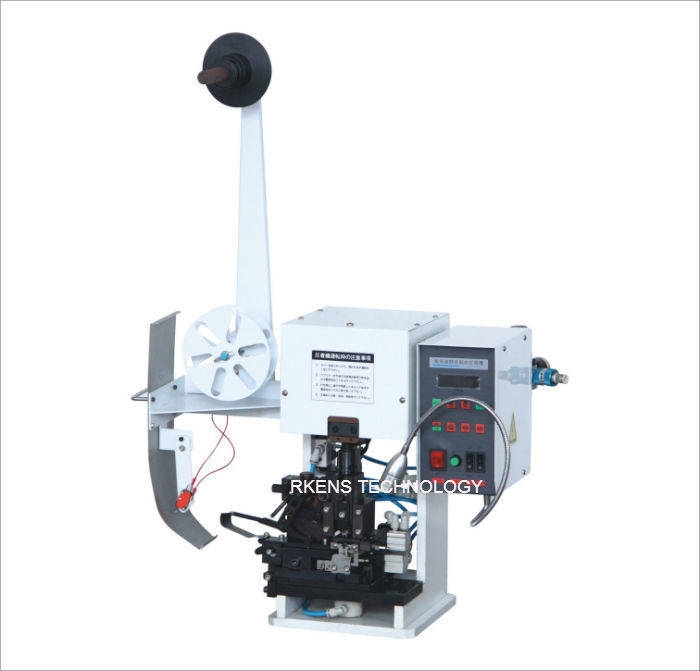

Pictures of crimping and stripping machine
