Automatic Cable Metering Cutting Winding And Binding Machine For 1-12mm Cables Coiling

China Automatic Cable Metering Cutting Winding And Binding Machine For 1-12mm Cables Coiling supplier
Automatic Cable Metering Cutting Winding And Binding Machine For 1-12mm Cables Coiling supplier

Large Image :  Automatic Cable Metering Cutting Winding And Binding Machine For 1-12mm Cables Coiling

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: RS-45GZ

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Wooden case
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Name: Automatic Cable Metering Cutting Winding And Binding Machine Max Load Weight: 3KG
Cable Dia: 1-12mm Power Supply: 110V/220V 50HZ/60HZ

Automatic Cable Metering Cutting Winding And Binding Machine For 1-12mm Cables Coiling



Intro:

This machine can count cables and cut cables to required length. Then wind and bind cables. It works for AC power cable, DC power cable, USB data cables, HDMI HD cables, etc.

Cable diameter: 1-12mm

Max load weight: 3KG. For heavier weight,we can use servo motor for winding.





Specification:



Model RS-45GZ
Function Count,sort,wind,bind
Winding range Customized inner core
Suitable wire 1-12mm
Power supply

AC220/110V

50/60HZ

Winding load weight 3.0KG
Binding diameter

18-45mm

(Can be customized for 40-80mm)

Size 1000x610x1100mm
Weight 160KG





Key features:

1. Can set wire length, and machine will stop after counting required length

2. Can wind cables in good order

3. Can cut cables after required length reaches

4. Can bind/bundle cables

5. Fast speed winding, counting, save time



Winding and binding samples

Automatic Cable Metering Cutting Winding And Binding Machine For 1-12mm Cables Coiling

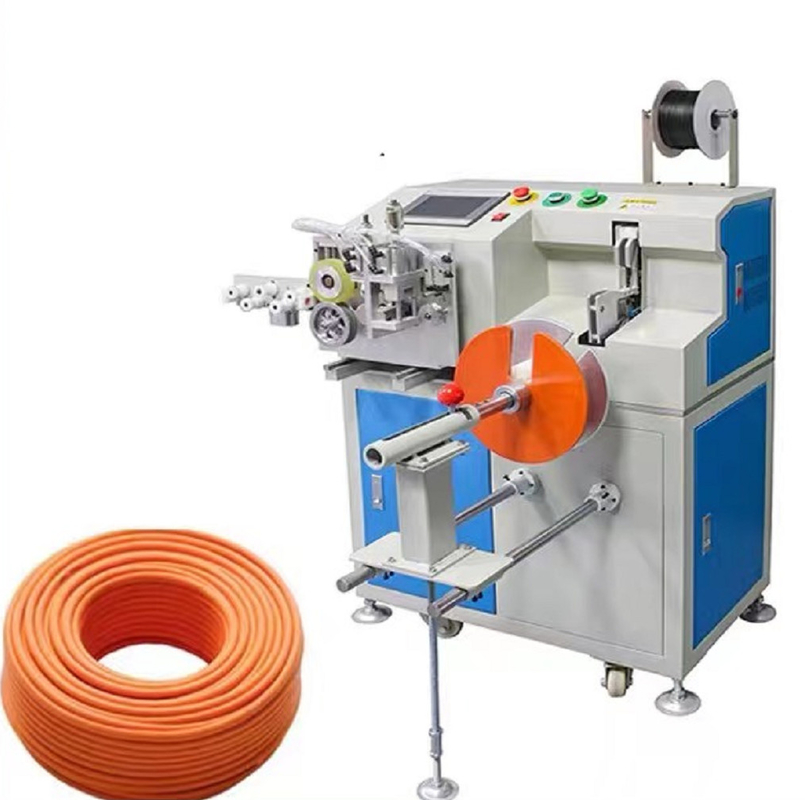

Machine picture.

Automatic Cable Metering Cutting Winding And Binding Machine For 1-12mm Cables Coiling
