Automatic Copper Tape Wire Splicing Machine

Name: Automatic Copper Tape Wire Splicing Machine
Brand: RKENS
SKU: RS-04A
Price: 1 USD
Availability: InStock
Rating: 5 (102 reviews)

Automatic Copper Tape Wire Splicing Machine supplier

Large Image : Automatic Copper Tape Wire Splicing Machine

Product Details:

Place of Origin:	China
Brand Name:	RKENS
Model Number:	RS-04A

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Payment Terms:	T/T, Western Union

Contact Now

Detailed Product Description

Name:	Copper Strap Wire Joint Machine, Wire Connecting Machine, Copper Tape Joint	Copper Tape Size:	2mm,4mm,6mm,8mm,10mm
Stoke Strength:	1800KG	Usage:	Crimping

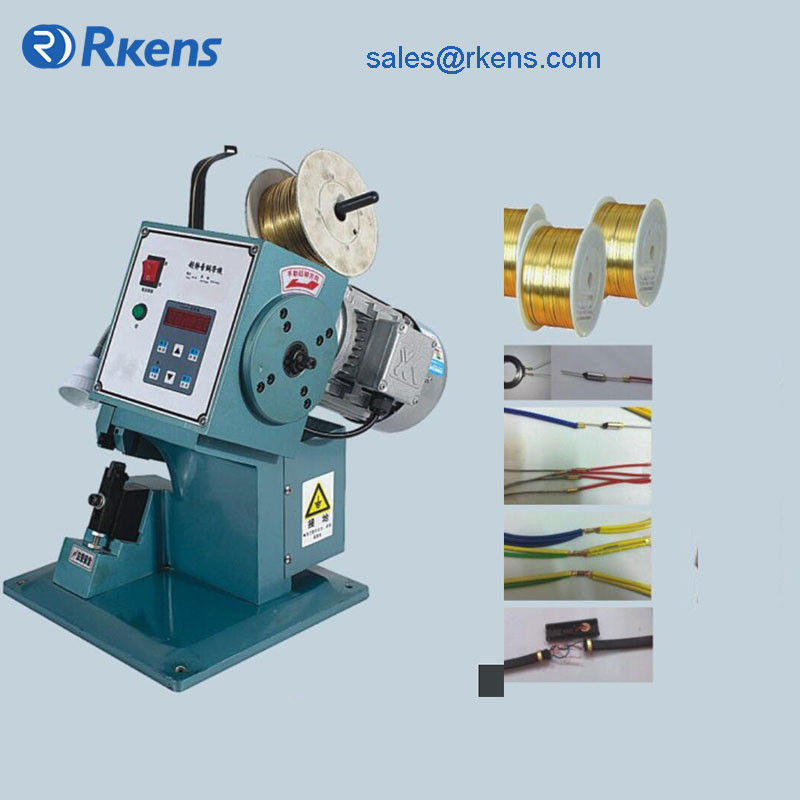

Automatic copper strap machine wire joint machine RS-04A

Intro:

Connecting wire with neon lamp,
Connect LED with wire,
Connect slide switch with wire(instead of soldering)
Connection of high temperature heating elements, sensitive components(eg: magnetic reed switch, constant temperature fuse.)
Transformer tap and wire connection
Etc

Specification:

Model	RS-1.8T	RS-3.0T	RS-4.0T
Power supply	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ
Pressing force	1800KG	3000KG	4000KG
Motor Power	0.55KW	1.0WK	1.5KW
Feed length	22mm	32mm	42mm
Copper strip width	2/4/6mm	6/8/10mm	6/8/10mm
Size	310x450x480mm	330x600x630mm	430x700x730mm
Weight	45KG	110KG	130KG

Feature:

Joint samples

Processing wire riveting,fast,effective.Crimping wires connection by copper belt,replace the traditional soldering,no drawback cold welding,aire welding and air pollution.
It uses continuous copper belt that is with special materials,cutting, forming, pressing, can be finished one time. No waste.
Can be used with different molds for different products connecting.
Copper terminals with a special texture processing, riveting after pulling resistance is particularly strong, stable quality, equipped with straight and curved mold seat for different products, Humanized design, easy to operate, do not need to be trained to operate at any time.
