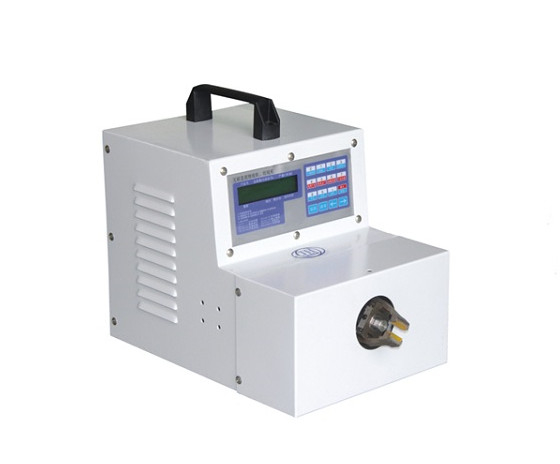

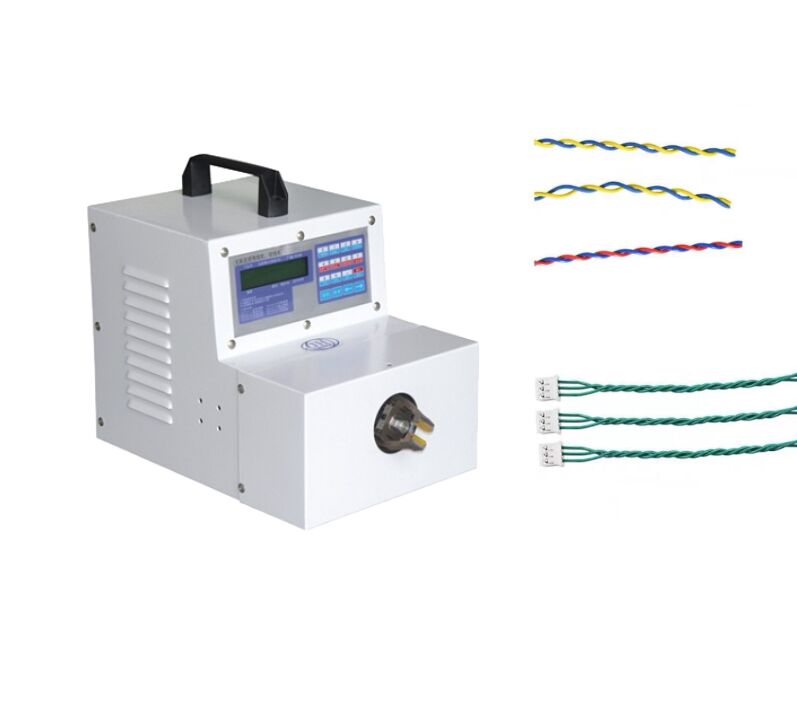

RS-J100W-A Wire Twisting Machine With Automatic Clamp Holder
  • RS-J100W-A Wire Twisting Machine With Automatic Clamp Holder

RS-J100W-A Wire Twisting Machine With Automatic Clamp Holder

Place of Origin China
Brand Name RKENS
Model Number RS-J100W-A
Product Details
Name:
Wire Twisting Machine With Automatic Clamp Holder
Power Supply:
AC 220V/110V 50HZ/60HZ
Product Description

RS-J100W-A Wire Twisting Machine With Automatic Clamp Holder

Intro:

This wire twisting machine is full electric type machine, without foot switch. It can sense the wire, and automatically clip the wires. Operator can set start-twisting time after clipping, also can set unclasping time after twisting is finished.



Usage:

.

Twist wires togethers. Suitable for electric wire, copper wire,etc



Parameters:



Spindel rotation speed 300-7500Adjustable Power supply AC220,AC110 V
Max wire diameter 3m Twist Quantity 0.5-9999.9 circles
Max Storage of Work pieces 99 Winding error Zero
Max winding process per piece 20 sections Max output

9999






Feautres:

  • Advanced LCD + backlit display mode, the operation mode of modern mobile phones
  • Motor directly out of the shaft and no transmission torque loss
  • Zero maintenance, no carbon brush, electromagnetic brake, belt, such as mechanical wear, we adopt the advanced electronic control braking way.
  • Perfect industrial protection circuit design, ensure trouble-free working more than 20000 h
  • Data setted can be saved well permanently.
  • Different segments can be set respectively different winding direction, also has the positive and reverse counting function.
  • Different segments can be set respectively different winding speed, small noise, high torque at low speed constant
  • Quick start, high speed, it can be directly brake under high speed, high work efficiency.0-9 start speed can be chosen, slow startup mode can be set respectively in different period of the different ways of slow start
  • After twisting, it has production statistics, number tips,also winding section can be chosen



Machine video
