Copper Strap Wire Joint Machine, Wire Connecting Machine, Copper Tape Joint

China Copper Strap Wire Joint Machine, Wire Connecting Machine, Copper Tape Joint supplier
Copper Strap Wire Joint Machine, Wire Connecting Machine, Copper Tape Joint supplier

Large Image :  Copper Strap Wire Joint Machine, Wire Connecting Machine, Copper Tape Joint

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: RS-04

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Name: Copper Strap Wire Joint Machine, Wire Connecting Machine, Copper Tape Joint Copper Tape Size: 2mm,4mm,6mm,8mm,10mm
Stoke Strength: 1000KG Usage: Crimping

Copper Strap Wire Joint Machine, Wire Connecting Machine, Copper Tape Joint





Application:



  • Connecting wire with neon lamp,
  • Connect LED with wire,
  • Connect slide switch with wire(instead of soldering)
  • Connection of high temperature heating elements, sensitive components(eg: magnetic reed switch, constant temperature fuse.)
  • Transformer tap and wire connection
  • Etc

Machine video: https://www.youtube.com/shorts/CxHfxanX1rY



Features:

  • Processing wire riveting,fast,effective.Crimping wires connection by copper belt,replace the traditional soldering,no drawback cold welding,aire welding and air pollution.
  • It uses continuous copper belt that is with special materials,cutting, forming, pressing, can be finished one time. No waste.
  • Can be used with different molds for different products connecting.

  • Copper terminals with a special texture processing, riveting after pulling resistance is particularly strong, stable quality, equipped with straight and curved mold seat for different products, Humanized design, easy to operate, do not need to be trained to operate at any time.



Specification:

Model RS-1.8T RS-3.0T RS-4.0T
Power supply AC220V 50/60HZ AC220V 50/60HZ AC220V 50/60HZ
Pressing force 1800KG 3000KG 4000KG
Motor Power 0.55KW 1.0WK 1.5KW
Feed length 22mm 32mm 42mm
Copper strip width 2/4/6mm 6/8/10mm 6/8/10mm
Size 310x450x480mm 330x600x630mm 430x700x730mm
Weight 45KG 110KG 130KG

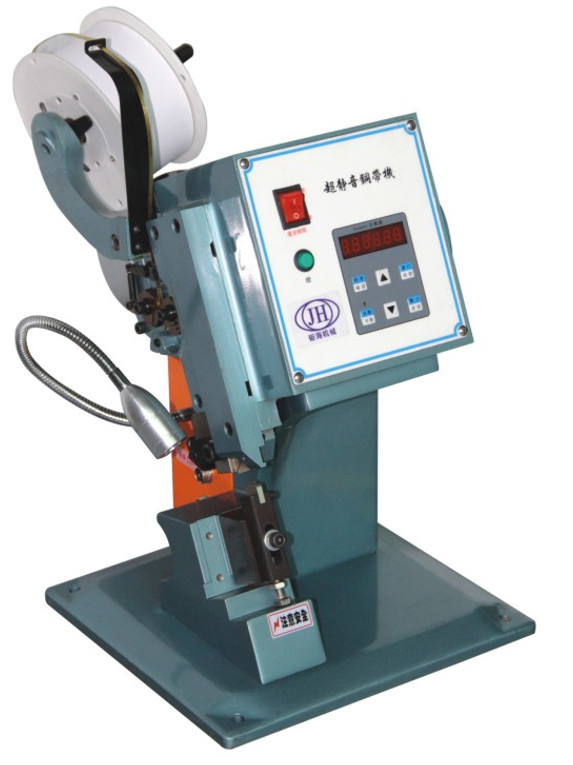

Wire splicing machine picture

Copper Strap Wire Joint Machine, Wire Connecting Machine, Copper Tape Joint





Copper Strap Wire Joint Machine, Wire Connecting Machine, Copper Tape Joint



Protect cover

Copper Strap Wire Joint Machine, Wire Connecting Machine, Copper Tape Joint
