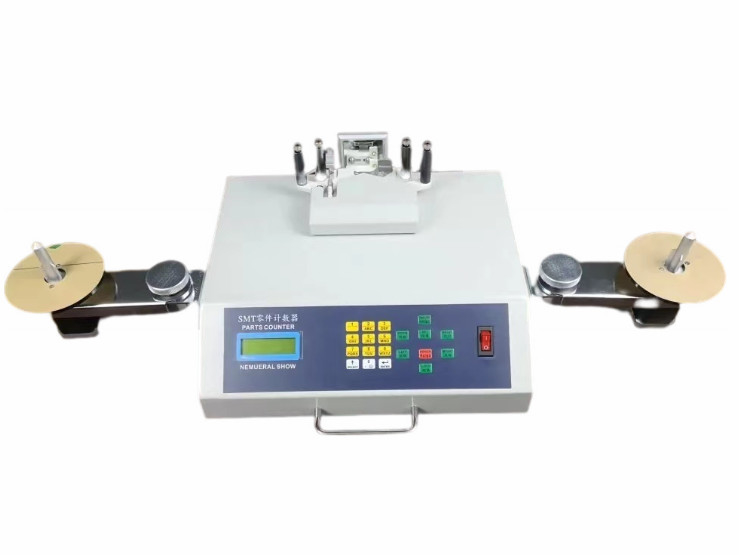

RS-801E Economic SMD Components Counting Machine
  • RS-801E Economic SMD Components Counting Machine

RS-801E Economic SMD Components Counting Machine

Place of Origin China
Brand Name RKENS
Certification CE
Model Number RS-801E
Product Details
Name:
SMD Components Counter
Usage:
Count Tape&reel Smd Components
Type:
Automatic
Detect Missing Parts:
No
Payment & Shipping Terms
Minimum Order Quantity
1SET
Packaging Details
Carton box or Wooden case
Delivery Time
3-5 days
Payment Terms
T/T, Paypal,Western Union
Product Description

High Efficiency SMT SMD Parts Counter , SMD Counting Machine



Intro :



Protable SMD parts counter, full autoamtic counting . It can count SMD taped and reel components fast and accurately. For 5000pcs components, it will only take 30 seconds. . Fully control the number of SMT parts in the factory, and avoid the inventory and capital accumulation. Small size, light weight, easy to carry.



Note: This machine can not detect missing parts. No fiber sensor.



Suitable:



1. Any size Reel SMD electronic components/chip, such as SMD capacitor, SMD resistor, etc

2. Space between two components: 2,4,8,10,12,16,24,32,44,56(mm)

3. Width of reel: 8, 12, 16, 24, 32, 44, 56mm

4. Suitable for all industries related to SMD components



Parameters



SMD parts counting Machine Technical Data



Model RS-801E
Name High Efficiency SMT SMD Parts Counter , SMD Counting Machine
Voltage AC110V/220V, 50/60Hz(convertible)
Capability 5000 pcs /30s
Power consumption 30W(2 Motors)
Counting volume -99999 ~ 99999pcs
Size L470*W300*H180mm
Net Weight 10kg
Reel Diameter Suitable for SMD Reel with any diameter
Reel Interval Distance 2,4,8,10,12,16,24,32,44,56mm
Reel Width 8,12,16,24,32,44,56mm
Pocket check Optional





Features



1. Full automactic counter, high accuracy, no error.

2. No risk of damaging the tapes, special design to prevent SMD reel from dropping.

3. Count forward and backward,double-checking ensures accuracy,built-in memory allows you to preset count quantity.

4.The counter use drafting LCD screen, easy operation, full English display.

5. Use patent reflector,humanized operation platform.

6. Optional bar scanner and code printer, convenient for component management.

7. Optical sensor can detect empty components. Motor will stop working when detected leak.



SMD counting Machine working Principle:



Using photoelectric sensing principle, the use of parts loaded with guide hole, the corresponding relationship between parts of accurate determination of number of SMD components, which can realize quick and easy counting, SMT material management is the effective auxiliary equipment, especially for outward processing of materials development work has a lot of help.
