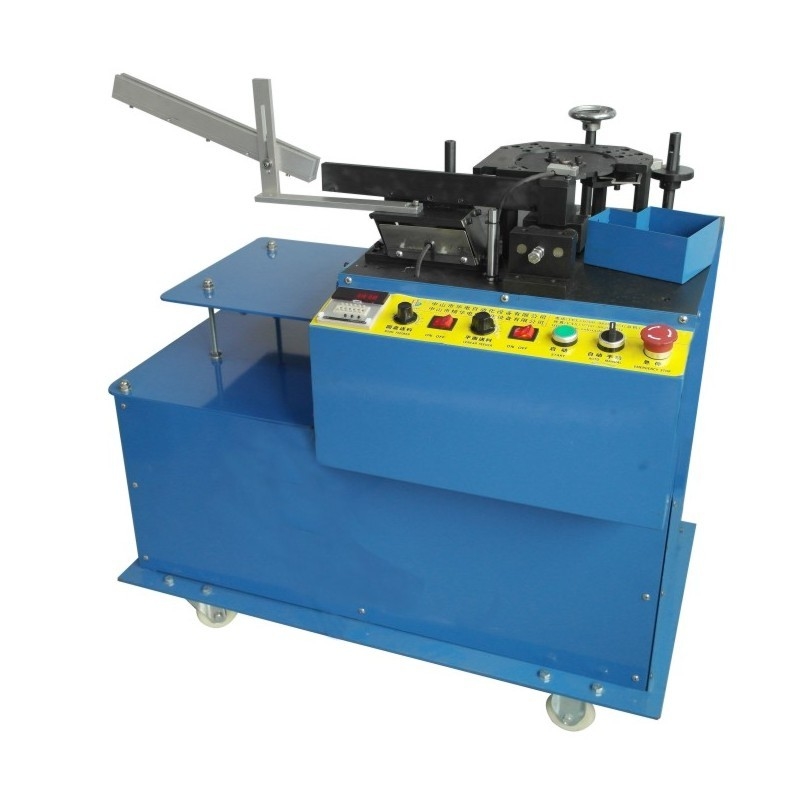

RS-909B Tube-packed TO-220 Transistor Lead Cutting Forming Machine

We got the automatic cutting machine. It is good packed and the quality looks perfect. The most important thing is that it can cut our poly tubes well.

—— Matthew Eschbach

Sally, Thanks for your attention. The counter can count our labels accurately and fast. We will recommend it to our customers surely.

—— Roger

Hi Sally. We are very happy to be your customers. The stripper machine can strip our hook-up wires very well.

—— Ruben

Hello Sally, We receive your LED cutting machine, It looks nice. Thanks in advance

—— Michael May

Hello Sally, We received the machine on Wednesday.We tried it and it works very well. I hope my customer will like it too. Thanks for the business

—— Laszlo Puskar

I'm Online Chat Now

RS-909B Tube-packed TO-220 Transistor Lead Cutting Forming Machine

China RS-909B Tube-packed TO-220 Transistor Lead Cutting Forming Machine supplier
RS-909B Tube-packed TO-220 Transistor Lead Cutting Forming Machine supplier

Large Image :  RS-909B Tube-packed TO-220 Transistor Lead Cutting Forming Machine

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: RS-909B

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Carton box or Wooden case
Delivery Time: 3-5 days
Payment Terms: T/T, Paypal,Western Union
Detailed Product Description
Name: Tube-packed TO-220 Transistor Lead Cutting Forming Machine Usage: Cut And Form Transistors Leads
Available Shapes: Cut And Bend 90, Middle-lead Front Push, Etc Power Supply: 220V/110V 50HZ/60HZ

RS-909B Tube-packed TO-220 Transistor Lead Cutting Forming Machine

Intro:



RS-909B is specially for tube-packed transistor lead forming. Optional feeder bowl works for forming loose transistor. We provide different models of transistor lead forming machine as per customers' budget.

  • RS-909A is for loose transistor lead forming
  • RS-909B for tube-packed transistor lead forming
  • RS-920 is pneumatic type transistor lead forming machine
  • RS-920A is motorized transistor lead forming machine for tube-packed transistor.



Suitable:



  • It is suitable various type transistor lead forming. For example TO 92, 126, 220, Hall sensor, etc
  • Forming tool is customized as per needs.
  • For tube-packed forming lead



Parameter:





Model RS-909B
Name Automatic Tube-Packed Transistor Lead Cutting Forming Machine
Suitable For TO 126, 220, transistor, 92 triode, etc
Power Supply 220V/110V 50HZ/60HZ
Efficiency 3300-3600pcs/h
Feature Can detect +- side, can form 90 degrees, form one lead away, cut lead to different length, Can be customized as per requirements





Feature:



1. Fast speed transistor lead forming machine with 3300-3600pcs/hour. High efficiency.

2. Can form different shapes as per customers' needs. Forming tool is customized.

3. Easy to adjust shoulder, length and other size.

4. Can detect sides, bend 90 degrees, widen legs, cut leads to different length, etc.

5. Optional feeder bowl for loose type transistor lead forming.



Available forming shapes

RS-909B Tube-packed TO-220 Transistor Lead Cutting Forming Machine

RS-909B Tube-packed TO-220 Transistor Lead Cutting Forming Machine
