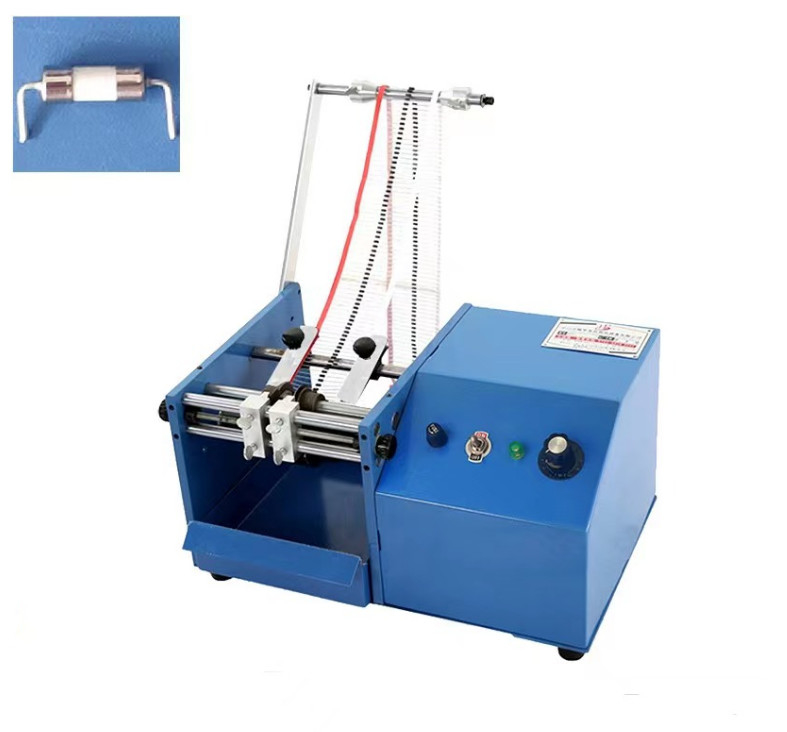

Motorized U Type Axial Lead Cutter And Former For Taped Axial Components

Intro:

RS-904U is a automatic motoried axial lead former for taped axial components. The forming tool is for U shape forming. We can also provide F shape forming tool. Low maintenance taped axial lead formers process up to 40,000pph while placing minimal mechanical stress on the component body during bending. Tape reel holder (included) is adjustable for pitch and cut length.

Suitable:

• For taped axial components, such as taped resistor, taped diode, etc
• Lead diameter should be within 0.35-0.8MM diameter
• Cut leads only, or cut and form. Can be customized.
• Motorized machineWorks on 220V or 110V.
• Fast speed, easy operation. Save labor.

Parameter:

Features:

1. This machine is suitable for axial taperesistors and electronic components forming and cutting feet;

2. Forming and cutting feet can be finished by one time. Strong processing ability, the output can reach to 60000 components per hour;

3. Small volume, easy to hand operation can be installed in the desktop use, without being limited by the space;

4. Forming span and feet length are adjustable;

5. Using tools imported from Japan, durable;

6.U type (horizontal)& F (vertical) two models cannot be Shared. Please make clear before ordering.

Available Forming size

Forming samples

Machine video:
