RS-901AW Bulk Electrolytic Capacitor Lead Cutting And Bending Machine With Polarity Detection

RS-901AW Bulk Electrolytic Capacitor Lead Cutting And Bending Machine With Polarity Detection

Intro:

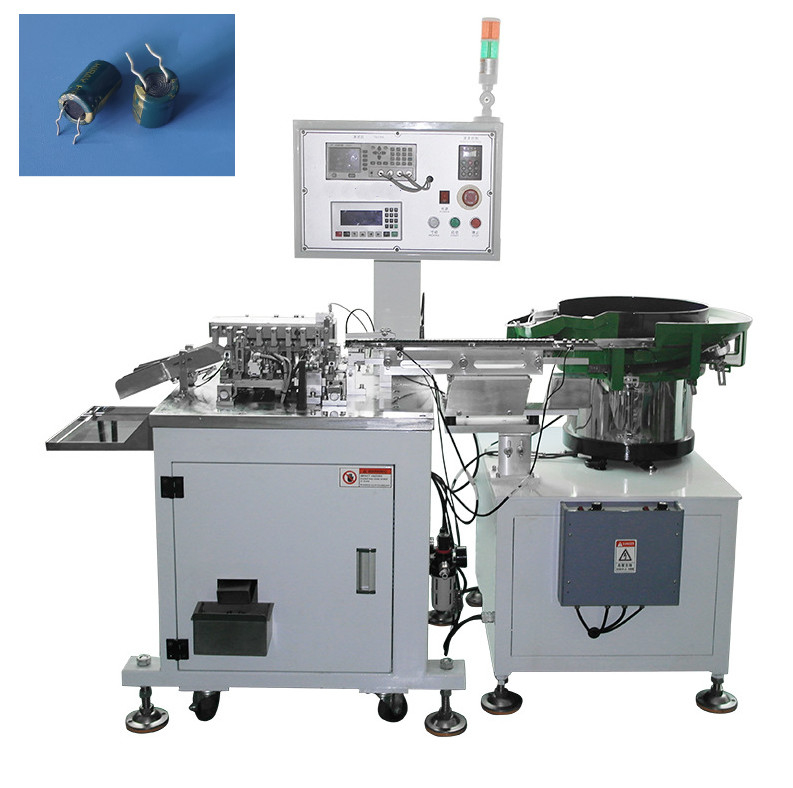

RS-901AW is full automatic lead cutting and forming machine electrolytic capacitors. It can work for electrolytic capacitor, LED components, and other radial components. It is mainly composed three parts: vibration feeder bowl, forming parts and testing device. Vibration bowl can feed capacitors automatically, fast speed and save labor.  It can cut capacitor leads only, or cut and bend, forming die can be customized. Tester device makes allows operator to set testing capacitance. Its fast speed is also amazing , which can reach 8000-12000pcs/hour. We Can customize feeder bowl, jigs, forming tool according to components.

For the forming process, there are several major steps: 1. Spread capacitor leads  2. Straighten capacitor leads  3. Test capacitor polarity 4. Rotate capacitor if polarity is wrong 5. Test capacitance, if capacitance is within set range, capacitor will pass, or it will fall down. 6. Cut capacitor leads  7. Bend or form capacitor leads.

Available Electrolytic capacitor size. For different capacitor size range, it needs a different machine.

5-10mm Dia E-capacitor, max body height: 16mm

8-13mm Dia E-capacitor, max body height: 25mm

13-16 Dia E-capacitor, max body height: 30mm

16-18 Dia E-capacitor, max body height: 35mm

Suitable:

• For various types radial components, especially components needs to detect polarity, such as LED, E-caps,etc.
• Can detect polarity.
• Cut lead to different length, bend lead to 90 degrees, K shape, etc
• Jig is easily changed for different size of components
• Sepcial feeding and jig, avoid any damage to LED

Parameters:

Features:

• Cut length: 2.5-28MM, can detect polarity with PLC. Cut lead to different length, bend lead to 90 degrees, K shape,etc
• Can customize different vibration feeder bowl, mold and clamping head according to components. 4-8MM one clamping tool and 8-20MM one clamping tool. Easily changed.
• One machine can be equipped with different jigs, easy change.
• Detect polarity, can work for LED, electrolytic capacitor, which needs polarity check.
• Can test bad components and let them out.

Available Forming Shapes

E-capacitor lead cutting and forming machine video intruduction:
