Headless Screw Feeding And Locking Driving Machine With Vibration Feeder Bowl
  • Headless Screw Feeding And Locking Driving Machine With Vibration Feeder Bowl
  • Headless Screw Feeding And Locking Driving Machine With Vibration Feeder Bowl
  • Headless Screw Feeding And Locking Driving Machine With Vibration Feeder Bowl

Headless Screw Feeding And Locking Driving Machine With Vibration Feeder Bowl

Place of Origin China
Brand Name RKENS
Model Number YS-L401-2F
Product Details
Name:
Headless Screw Feeding And Locking Driving Machine With Vibration Feeder Bowl
Suitable:
For Headless Screws
Product Description

Headless Screw Feeding And Locking Driving Machine With Vibration Feeder Bowl



Intro:

YS-L401-2F is customized screw feeding driving machine for set screws without head. Automatic screwdriver machine puts the automatic screw feeding mechanism together with the electric screwdriver in order to achieve the complement of screw transmission and lock, which can greatly improve the production efficiency and save manpower.



Suitable:

Set screws without head



Parameters:

Model YS-L401-2F
Working Size 200(x)*400(Y)*100(Z) * 2 Working table
Voltage 220V/110V, 50/60HZ
Power 360W
Efficiency 3-5 second/workpiece
Import method of screw Air-blowing type
Capacity of screw pocket 8000 pcs
Customize Yes
Scope of application M1 - M6
Suitable screw head Any universal type
Size(L*W*H) 98x84x83CM
Weight 90kg



Features:

1. Wide universality, small in size, can cooperate with production line, convenient for product replacement.

2. High efficiency, the number of electric screwdriver of the Z axis is customizable according to customer’s requirements. Several electric screwdrivers can work at the same time, which is the work of a number of workers. For example, a desktop automatic screw locking machine with 4 electric screwdrivers can lock continually with 4 screws at one time; it can lock several products at the same time.

3. The Y axis can be made into double-station (that is, double Y axis),so the operator can load alternately.

4. Reduce the labor intensity of workers.

5. High degree of automation, easy operation which the staff can master and debug quickly. A worker can manage several machines at the same time.

6. Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.

7. The air-blowing screw is transmitted to the month of the electric screwdriver directly compare with the air-breathing ones, which saves the time of back and forth and ensures the efficiency.

8. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing, which will reduce leak screws of the products and increase the qualified rate.

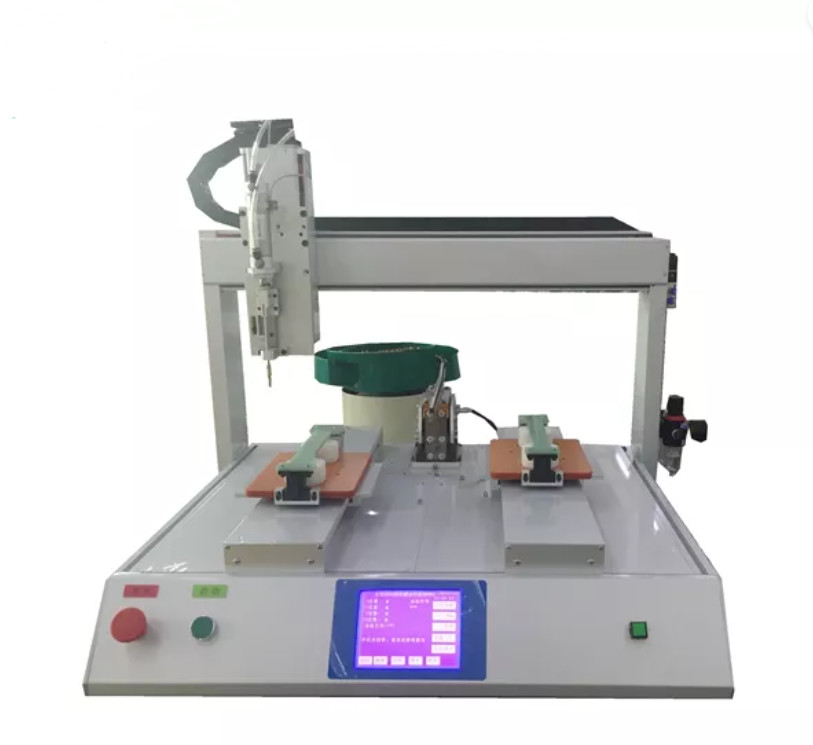

Machine pictures

Headless Screw Feeding And Locking Driving Machine With Vibration Feeder Bowl 0



Detail of vibration feeder bowl

Headless Screw Feeding And Locking Driving Machine With Vibration Feeder Bowl 1
