Electronic Components Transistor Forming Machine Transistor Bending 90 Degrees

China Electronic Components Transistor Forming Machine Transistor Bending 90 Degrees supplier
Electronic Components Transistor Forming Machine Transistor Bending 90 Degrees supplier

Large Image :  Electronic Components Transistor Forming Machine Transistor Bending 90 Degrees

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: RS-909A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Wooden case
Payment Terms: T/T
Contact Now
Detailed Product Description
Name: Electronic Components Transistor Forming Machine Usage: Cut And Bend Transistors Leads
Suitable For: Various Transistor Components Power Supply: 220V/110V 50HZ/60HZ

Electronic Components Transistor Forming Machine Transistor Bending 90 Degrees

Intro:

RS-909A is a full automatic and fast speed transistor lead forming machine. It can automatic feed transistor, detect back and front side. Forming tool can be customized for different forming needs, such as left-right windening leads, cutting leads to different length, bending 90 degrees. Special working mode and feeding mode, it can reach up to 3300-3600pcs/hour. It can greatly increase operator's efficiency.



Note:

  • One machine can only work for 1 type and 1 size transistor.
  • Auto feeding, detecting transistor front and back side, bending.

Suitable:

  1. For various transistor lead forming, including TO-92, 220, 126, Hall sensor, etc
  2. Can cut only , bend 90 degrees, cut leads to different length, winden leads, etc
  3. Autoamtic Feeding and Forming. High efficiency

Parameters:



Voltage 220V/110V AC60HZ/50HZ
Application Transistor lead cutting and forming machine
Effectivity 3300 to 3600 pcs per hour
Feature Auto feeding , auto distinguish on positive and negative pole
Forming Angles Can detect +- side, can form 90 degrees, form one lead away, cut lead to different length, Can be customized as per requirements
Available 126, 220, transistor, 92 triode, etc
Blade Life 6 months (up to specific use state)
Warranty One year





Applicable: Bulk transistors are cut and formed at one time. It can be automatically detect positive and negative sides, the equipment can form high and low shoulders, form 90 degrees, single foot push, long and short feet, etc., can be customized according to requirements



Features:

★Using the plane vibration feeding method to feed.

★ Splitter positioning, high stability.

★ "The defect rate is reduced to the lowest point", and there is no need to change the mold during molding.

★ For forming a single part, a pair of molds can only form one shape.

★ Can automatically divide the front and back

★Motor and electrical control are well-known brands

★The cylinder, cutter and mould are all specially made by SKD-11.

★Technical parameters: conventional machine molding 90 degrees, other molding shapes need to be customized. Only one device can be used

Specification materials, (different material bodies/shapes cannot share the same vibrating plate, fixture, forming mold,

dedicated aircraft).



Forming samples

Electronic Components Transistor Forming Machine Transistor Bending 90 Degrees

Electronic Components Transistor Forming Machine Transistor Bending 90 Degrees



Other available forming shapes



Electronic Components Transistor Forming Machine Transistor Bending 90 Degrees

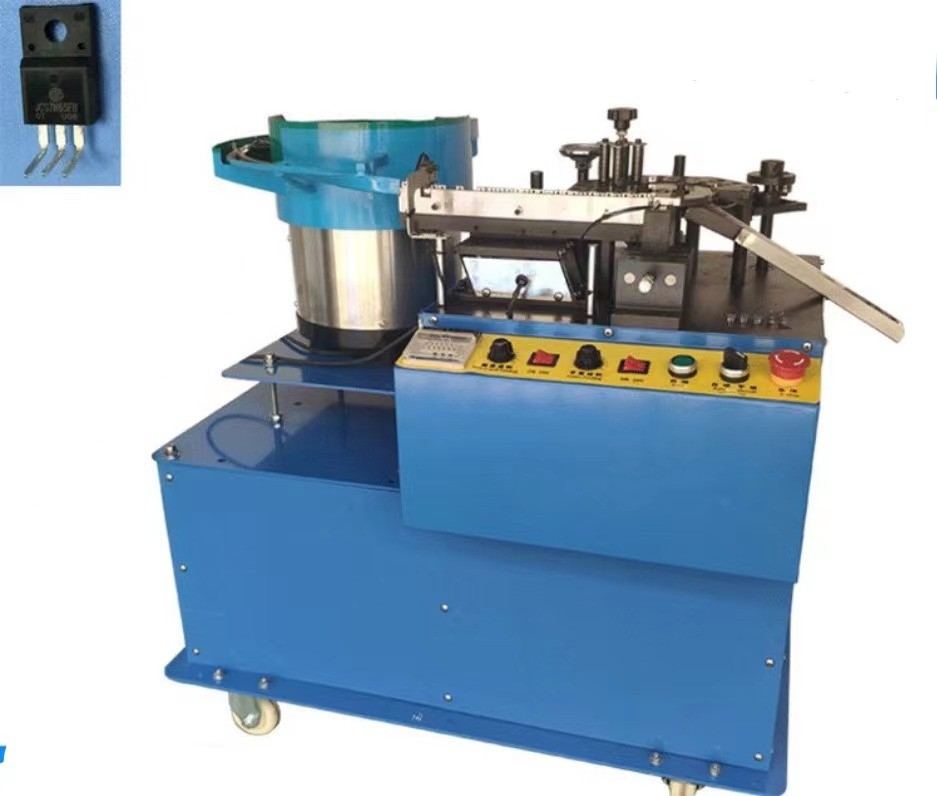

Machine picture

Electronic Components Transistor Forming Machine Transistor Bending 90 Degrees
