Mosfet Transistors Cut And Form Machine Transistor Center-Lead-Out Forming Machine
  • Mosfet Transistors Cut And Form Machine Transistor Center-Lead-Out Forming Machine

Mosfet Transistors Cut And Form Machine Transistor Center-Lead-Out Forming Machine

Place of Origin China
Brand Name RKENS
Model Number RS-909A
Product Details
Name:
Mosfet Transistors Cut And Form Machine Transistor Center-Lead-Out Forming Machine
Speed:
3300-3600pcs/hour
Product Description

Mosfet Transistors Cut And Form Machine Transistor Center-Lead-Out Forming Machine

Intro:

This Transistor forming machine is an automatic machine designed to cut and form transistors in a loose or tube packed (TO-220, TO-218, TO-126). It can automatic feed transistor, detect back and front side. Forming tool can be customized for different forming needs, such as left-right windening leads, cutting leads to different length, bending 90 degrees. Special working mode and feeding mode, it can reach up to 3300-3600pcs/hour. It can greatly increase operator's efficiency.

Note:

  • One machine can only work for 1 type and 1 size transistor.
  • Auto feeding, detecting transistor front and back side, bending.
  • All operations are controlled by a PLC. The complete process is fully automated.
    Each type of transistor requires a dedicated die.

Suitable:

  1. For various transistor lead forming, including TO-92, 220, 126, Hall sensor, etc
  2. Can cut only , bend 90 degrees, cut leads to different length, winden leads, etc
  3. Autoamtic Feeding and Forming. High efficiency

Mosfet Transistors Cut And Form Machine Transistor Center-Lead-Out Forming Machine

Parameters:

Mosfet Transistors Cut And Form Machine Transistor Center-Lead-Out Forming Machine

Voltage 220V/110V AC60HZ/50HZ
Application Transistor lead cutting and forming machine
Effectivity 3300 to 3600 pcs per hour
Feature Auto feeding , auto distinguish on positive and negative pole
Forming Angles Can detect +- side, can form 90 degrees, form one lead away, cut lead to different length, Can be customized as per requirements
Available 126, 220, transistor, 92 triode, etc
Blade Life 6 months (up to specific use state)
Warranty One year



Forming Samples

Mosfet Transistors Cut And Form Machine Transistor Center-Lead-Out Forming Machine 1

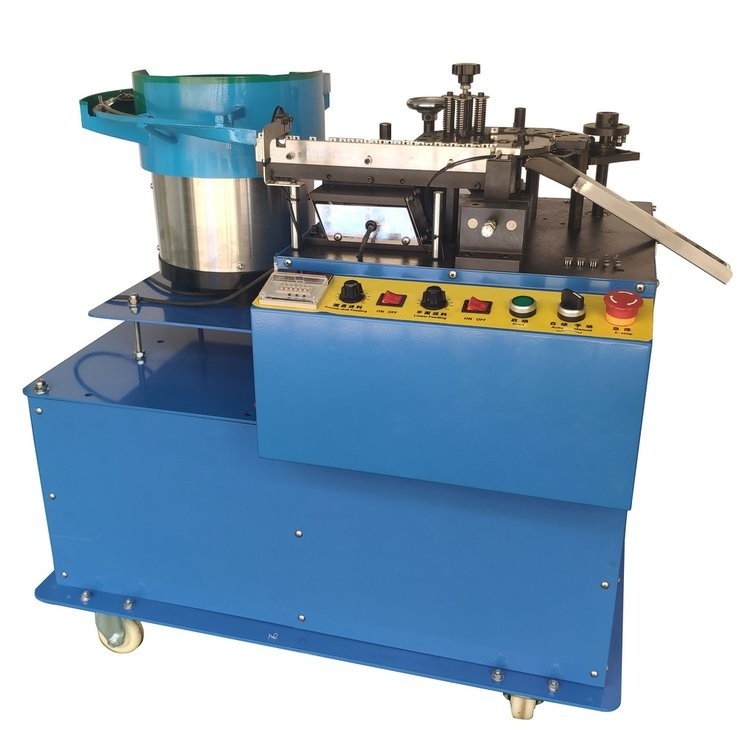

Detail picture of the transistor forming machine



Mosfet Transistors Cut And Form Machine Transistor Center-Lead-Out Forming Machine 2

Mosfet Transistors Cut And Form Machine Transistor Center-Lead-Out Forming Machine 3

Mosfet Transistors Cut And Form Machine Transistor Center-Lead-Out Forming Machine 4
