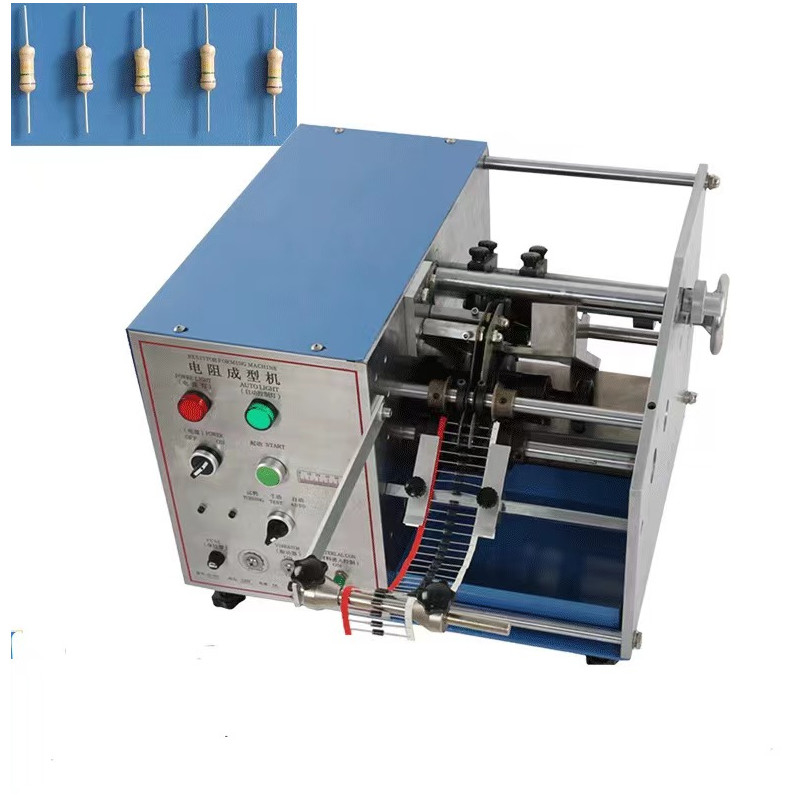

RS-907I Taped Axial Lead Cutting Shaping Machine For taped Resistor/Diode

RS-907I Taped Axial Lead Cutting Shaping Machine For Taped Resistor/Diode

Intro:

Automatic resistor lead cutting forming machine is used to cut and form axial resistor and diode leads. The forming tool is customized. It can form U, F or UK and FK shape according to customers' need. This machine is for taped components only, however we can also provide feeder bowl for loose components.

• Available Forming Type: U shape, F shape, U-K, F-K
• Lead diameter: 0.5-0.8MM or 1.0-1.3MM lead. Two size range can not use same machine.
• Forming shape can be customized

Suitable:

• Resistor And Diode Axial Lead Forming Machine is for taped axial components only. Optional feeder bowl can work for loose components
• We can make forming tool as per customers' need.
• Available lead diameter: 0.5-0.8MM or 1.0-1.3MM lead . Two lead diameter range can not share same machine.

Specification:

Features:

1.For tape diode/resstor. Can make cutting , bending and kinking.

2.Blade is imported SKD-11 material, durable.

3.Will not damage resistor and diode.

4.The production capacity is 3600-4500PCS/H . Adjustable speed, high efficiency.

Forming sampels showcase
